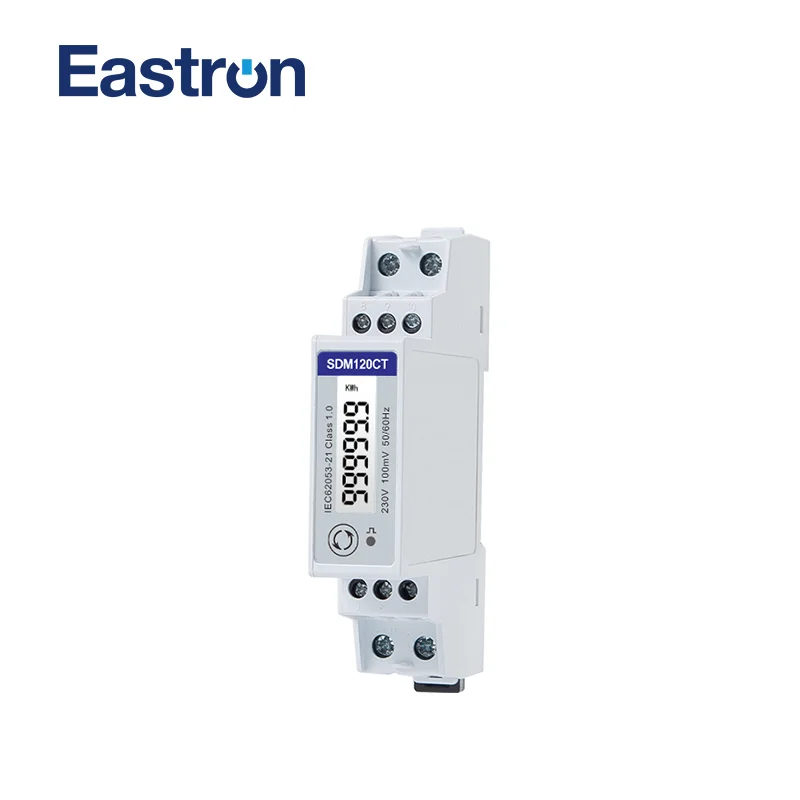

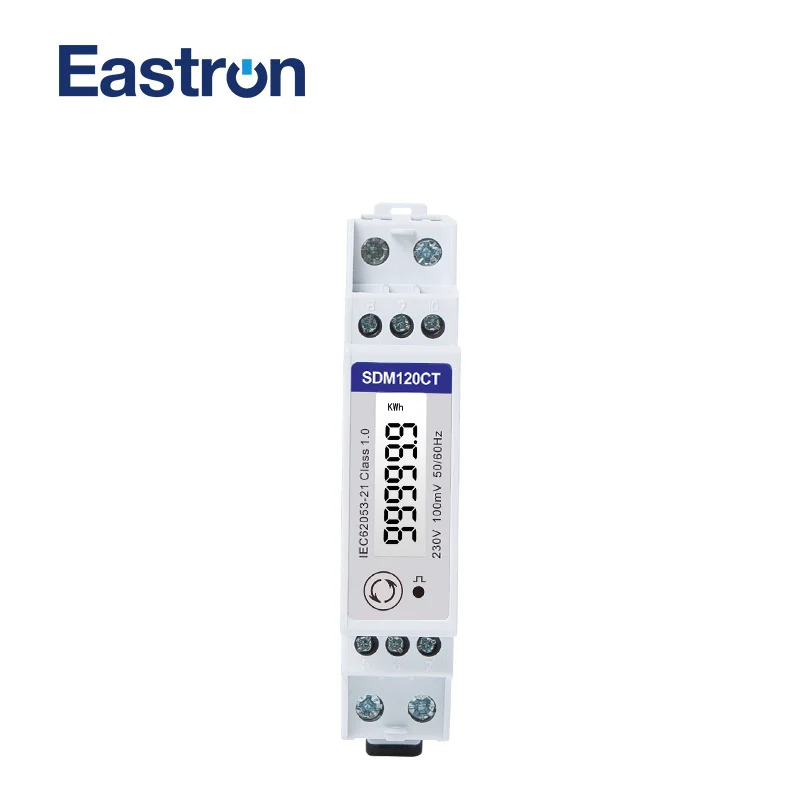

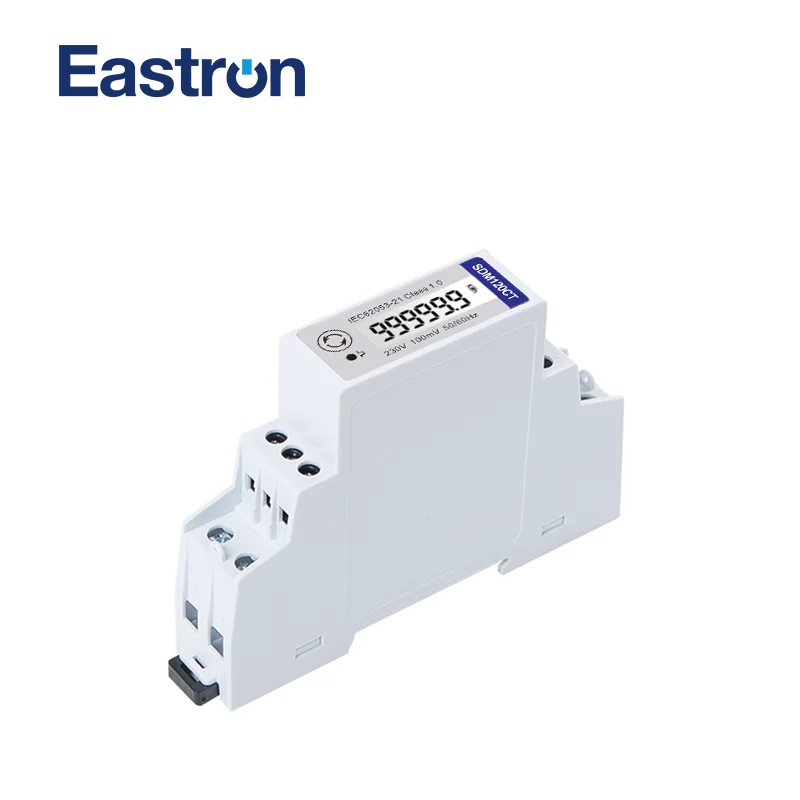

SDM120CT-MV+ESCT-TU10 50A/0.1V,1 Phase 2 Wire, 230V, RS485 Modbus, Measure kwh,kvarh,U,I,P,Q,PF,Hz,DIN Rail Energy Meter,MID

Product Features

This SDM120CT-MV+ESCT-TU10 energy meter, with a measuring energy range of 99999.9kwh, is suitable for single-phase 2-wire 230V systems, providing accurate energy measurement.
It features a digital-only display type, making it easy to read and monitor energy consumption, including kwh, kvarh, U, I, P, Q, PF, Hz.
With RS485 Modbus communication, it can be easily integrated into a monitoring system, allowing for remote data collection and analysis.
Originating from Mainland China, it meets the Class 1 IEC62053-21 accuracy class, ensuring reliable and precise energy measurement.
The meter has a compact size of 90*67.5*17.5mm and low power consumption (<2W/10VA), making it energy-efficient and easy to install in various electrical systems.

Specifications

Brand Name

YISITONG

Hign-concerned Chemical

None

DIY Supplies

ELECTRICAL

Measuring Energy Range

99999.9kwh

Display Type

Digital Only

Output Voltage

220V

Model Number

SDM120CT-MV+ESCT-TU10 50A/0.1V

Power Supply

Phase

single phase

Rated Voltage

230V

Dimensions

90*67.5*17.5mm

Accuracy Class

Class 1 IEC62053-21

Max Operating Current

20A - 49A

Voltage Range

176~276V AC

Primary Current

5-9999A

Secondary Input

0.1V

Starting current

0.4% of Ib

Power consumption

<2W/10VA

Frequency

50/60Hz(±10%)

AC voltage withstand

4KV for 1 minute

Overcurrent withstand

30Imax for 0.01s

Max. Primary Voltage

500KV

Description

SDM120CT-MV+ESCT-TU10 50A/0.1V,1 Phase 2 Wire, 230V, RS485 Modbus, Measure kwh,kvarh,U,I,P,Q,PF,Hz,DIN Rail Energy Meter,MID
