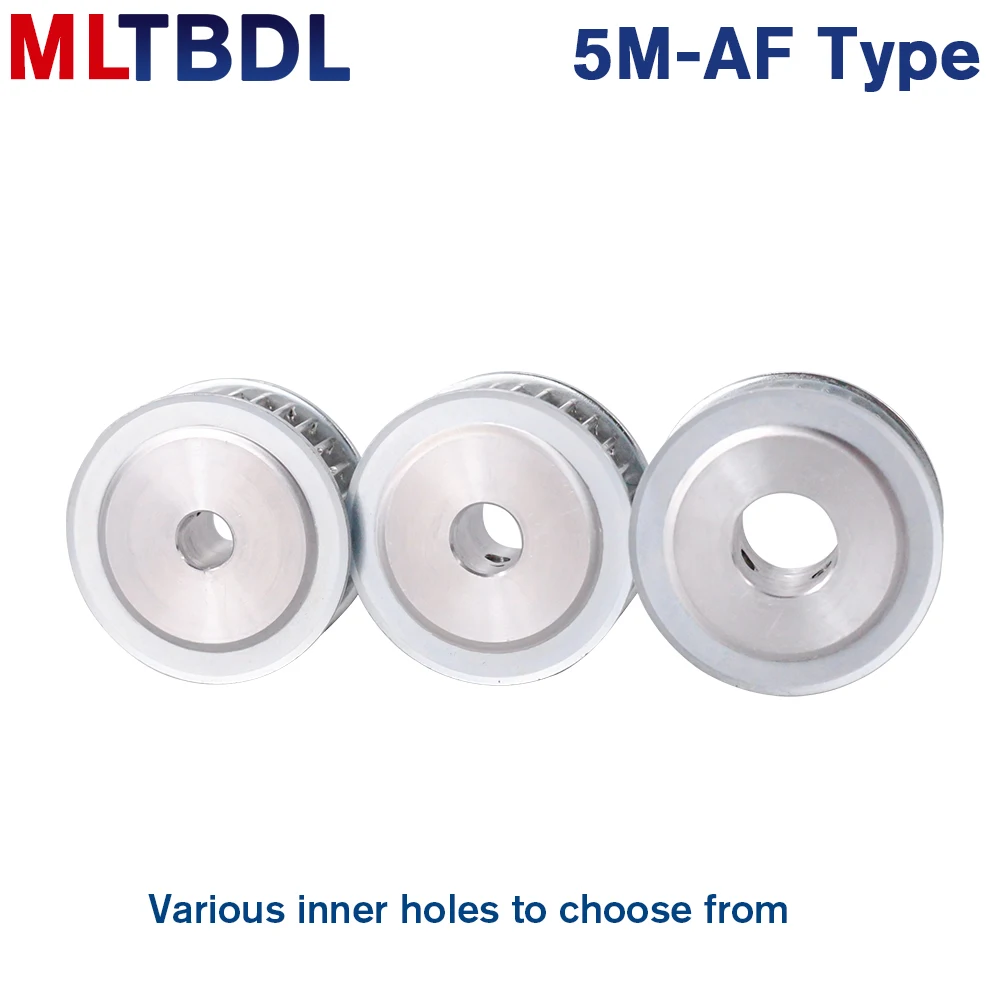

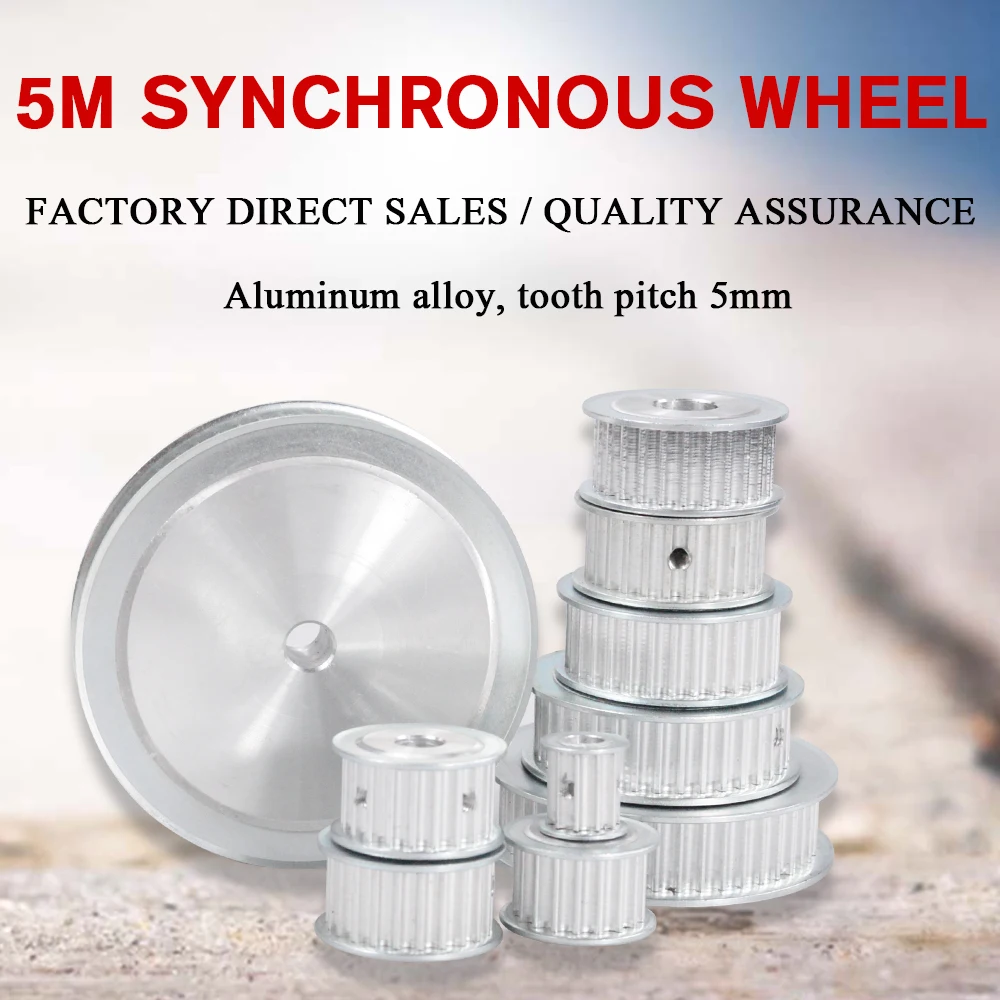

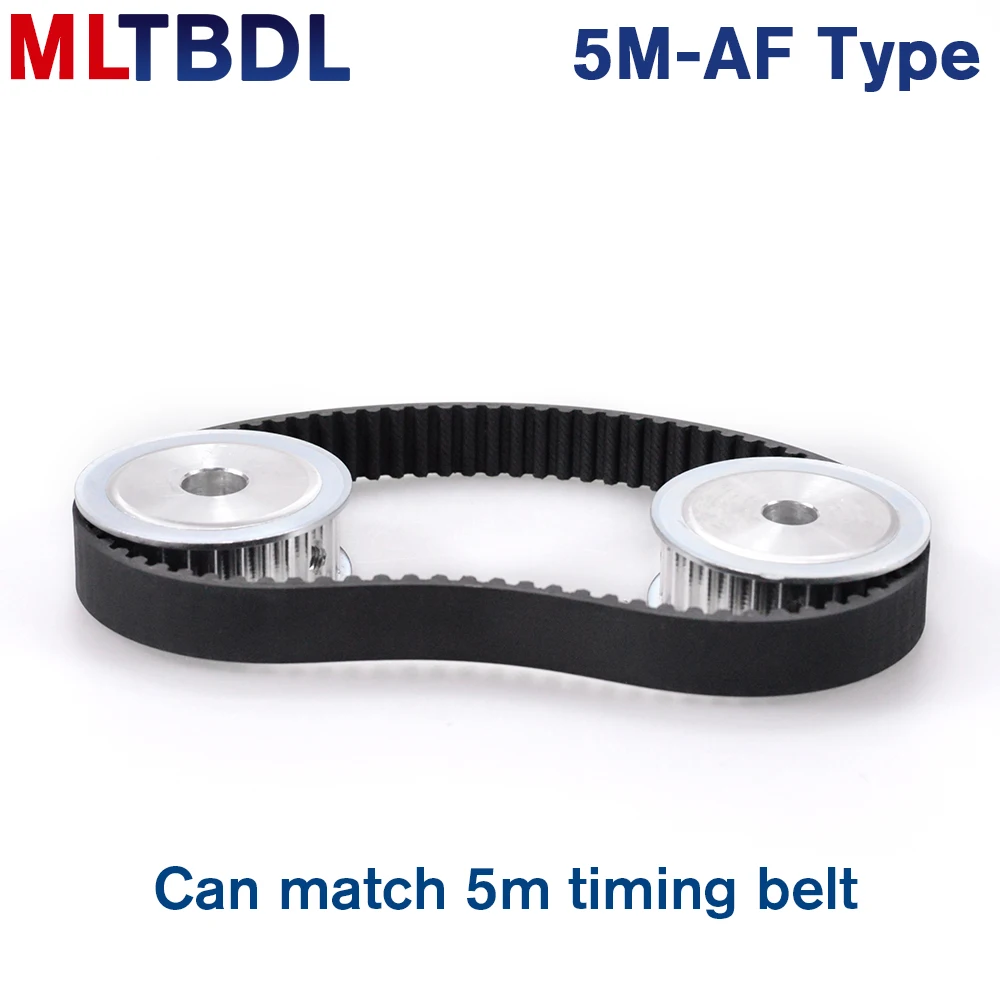

Timing Belt Pulley Belt Pulley Timing Pulley 5M Type 40T Timing Pulley Inner Bore 8/10/12/14/15/16/17/20/22/24/25/28mm 40Teeth 5mm Pitch 16/21mm width HTD

Product Features

This 5M type 40T timing pulley with various inner bore sizes (8-28mm) is made of alloy material, offering high strength and durability for reliable power transmission in mechanical systems.
With a 5mm pitch and 16/21mm width, it provides precise timing and smooth operation, ensuring efficient performance in different applications.
The double flange design enhances stability and prevents the belt from slipping off, making it suitable for high-speed and high-torque operations.

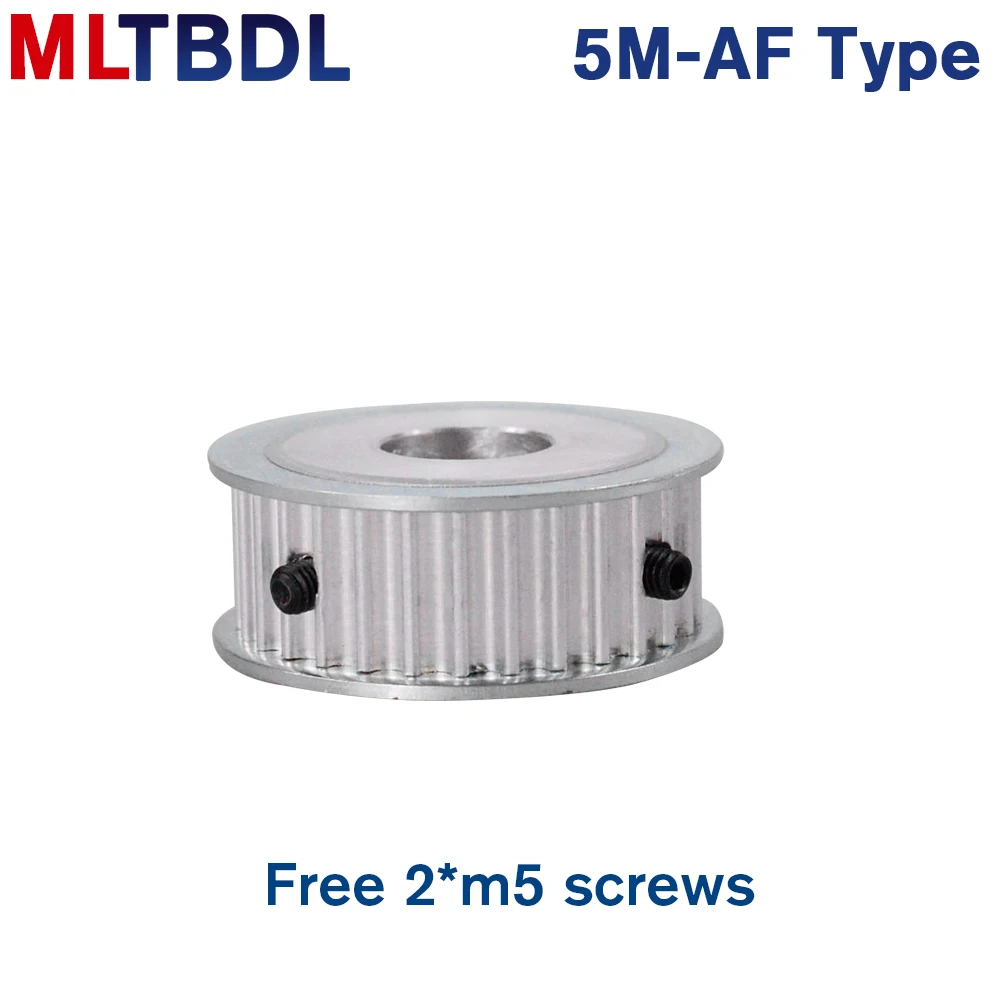

It comes with 2*M5 screw holes and keyway diameters of 3-8mm, allowing for easy installation and secure attachment to shafts.
Each package includes 1 piece, providing a cost-effective solution for your timing pulley needs in industrial or mechanical projects.

Specifications

Picth

5mm

Outside Diameter

62.52mm

Standard Belt Width

15/20mm

Screw Hole

2*M5

Flange

Double Flange

Keyway Diameter

3/4/5/6/8

Inner Bore

8/10/12/14/15/16/17/18/19/20/22/24/25/28

Package

1pcs

Brand Name

MLTBDL

Model Number

5m-40t

Type

Timing

Material

Alloy

Number of Teeth

semi_Choice

yes

Description

Timing Belt Pulley Belt Pulley Timing Pulley 5M Type 40T Timing Pulley Inner Bore 8/10/12/14/15/16/17/20/22/24/25/28mm 40Teeth 5mm Pitch 16/21mm width HTD
