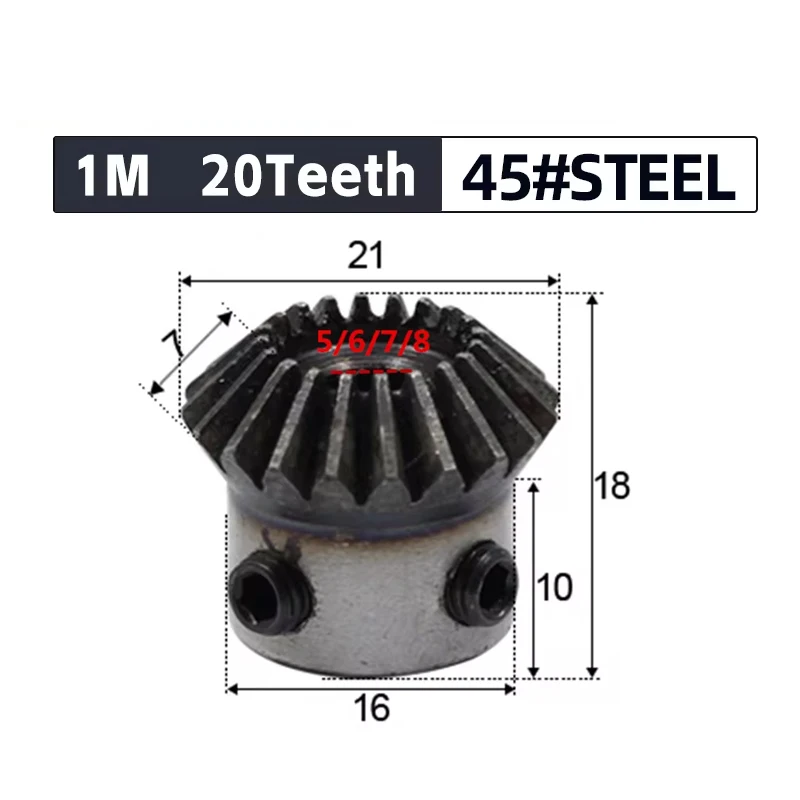

Bevel Gear 1M 20Teeth 45# Steel Inner Hole 5/6/7/8/6.35/9/10/12mm Gear 90 Degrees Meshing Angle Steel Gears Screw Hole M5 2pcs Motor Gear Transmission Gear Electric Bike Gear Cassette Deck Tape Gear Electric Chain Saw Gear

Product Features

This bevel gear, made of 45# carbon steel, has 20 teeth and a 90-degree meshing angle, suitable for transmission between staggered axes. It has a right-hand direction.
With inner hole options of 5/6/7/8/6.35/9/10/12mm and a screw hole M5, it offers high flexibility for different applications. It is a standard gear.
The bevel gear is processed by hobbing, resulting in a hard tooth surface with high tooth surface hardness. It is made in Mainland China.
Customization is available, allowing you to get the exact gear specifications you need. It is fixed by a clamping screw.
As an external gear, it is widely used in various industries such as electric bikes, motor gear transmissions, and cassette deck tapes.

Specifications

Brand Name

LHOHWP

Hign-concerned Chemical

None

Direction

Right Hand

Model Number

1mod

Material

Carbon Steel

Shape

Bevel

Processing

Hobbing

Tooth Profile

Bevel Gear

Standard or Nonstandard

Standard

Pressure Angle

20degrees

Application

transmission between staggered axes

fixed method

Clamping screw

position

External gear

Tooth surface hardness

Hard tooth surface

semi_Choice

yes

Description

Bevel Gear 1M 20Teeth 45# Steel Inner Hole 5/6/7/8/6.35/9/10/12mm Gear 90 Degrees Meshing Angle Steel Gears Screw Hole M5 2pcs Motor Gear Transmission Gear Electric Bike Gear Cassette Deck Tape Gear Electric Chain Saw Gear
