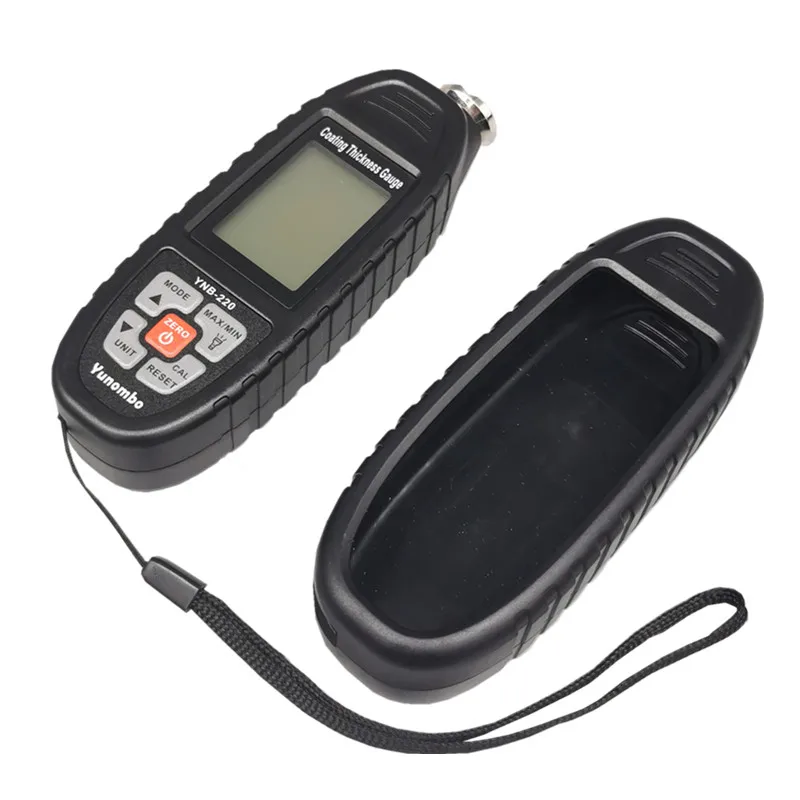

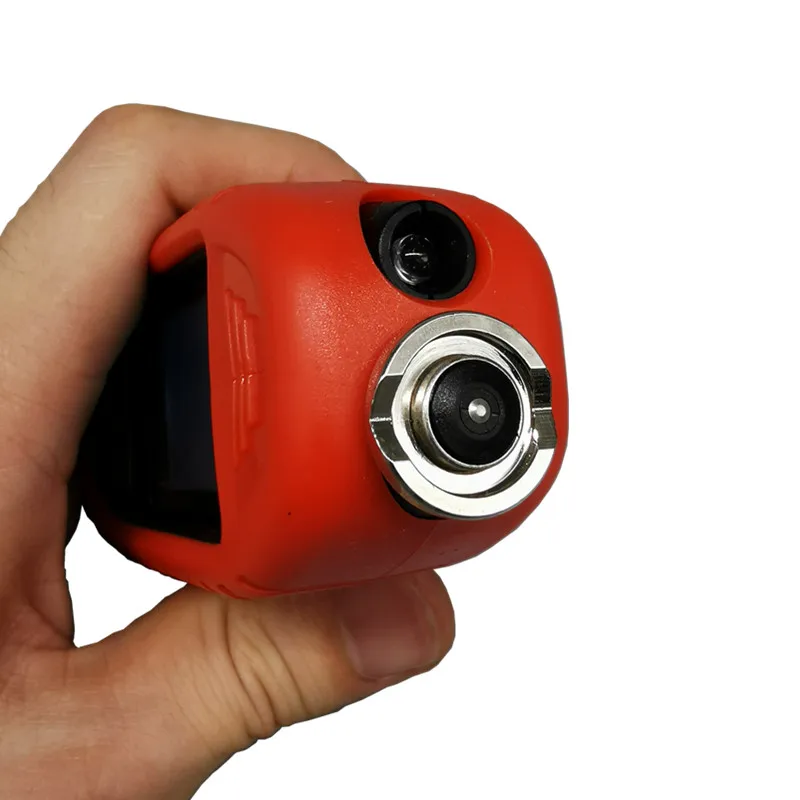

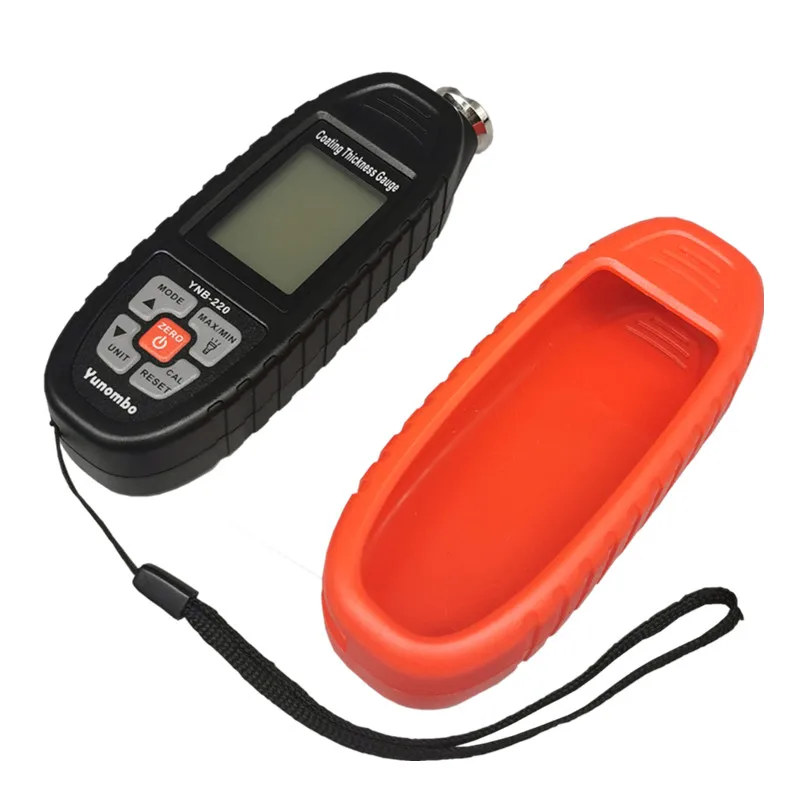

Film Thickness Meter Car Paint Tester Coating Thickness Gauge with Backlight LED/UV Flashlight

Product Features

This film thickness meter car paint tester with backlight LED/UV flashlight offers a measuring range of 0-1500um/0-59mil/0-1.5mm, providing accurate coating thickness measurements.
Certified with CE, it meets international quality standards, ensuring reliable performance for car paint testing and coating thickness gauging.
Featuring a backlight, it's easy to read the measurement results even in low-light environments, making it convenient for on-site inspections.
With a resolution of 0.1um (<100um), 1um (>100um)/0.1mil/0.001mm and an error range of <150um, +-5um; >150um, +-(3%H + 1um), it provides precise and consistent measurements.

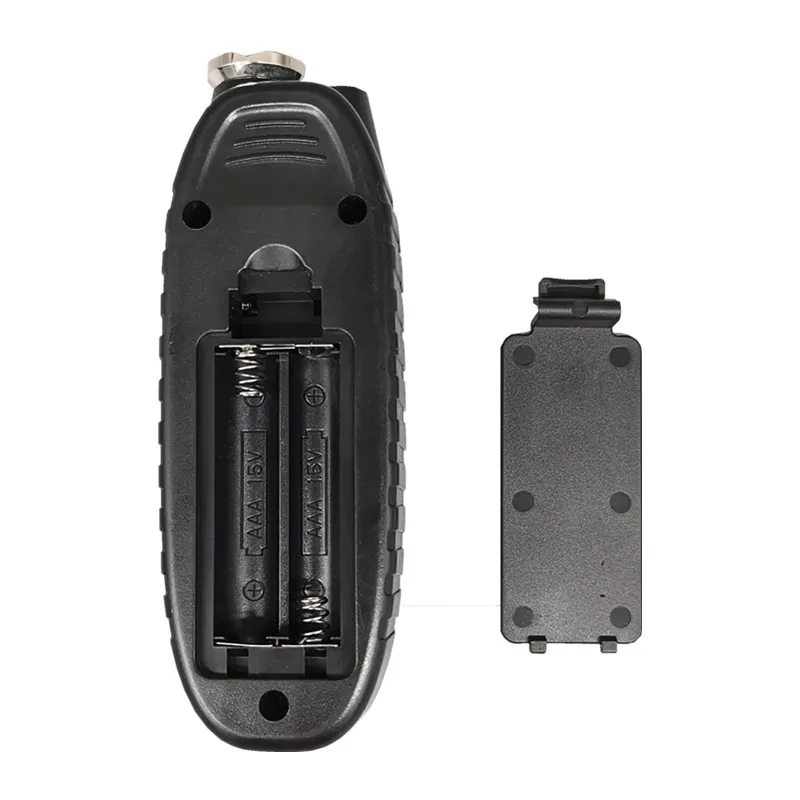

Powered by 2pcs 1.5V AAA batteries (not included) and with a weight of 109g (battery not included), it's a portable and practical tool for car paint thickness testing.

Specifications

Brand Name

Yunombo

With Backlight Or Not

YES

Model Number

YNB-220/220B/220U

Unit

um/mm/mil

Measuring Range

0-1500um/0-59mil/0-1.5mm

Resolution

0.1um(<100um),1um(>100um)/0.1mil/0.001mm

Error Range

<150um,+-5um; >150um,+-(3%H+1um)

Weight

109g(battery not included)

Size

46.5*30.4*122.2mm(with Rubber Case)

Power Supply

2pcs 1.5V AAA batteries(not included)

Operation Humidity Range

10-95%RH

Operation Temperature Range

-20~40C(Calibration needed when environment change)
