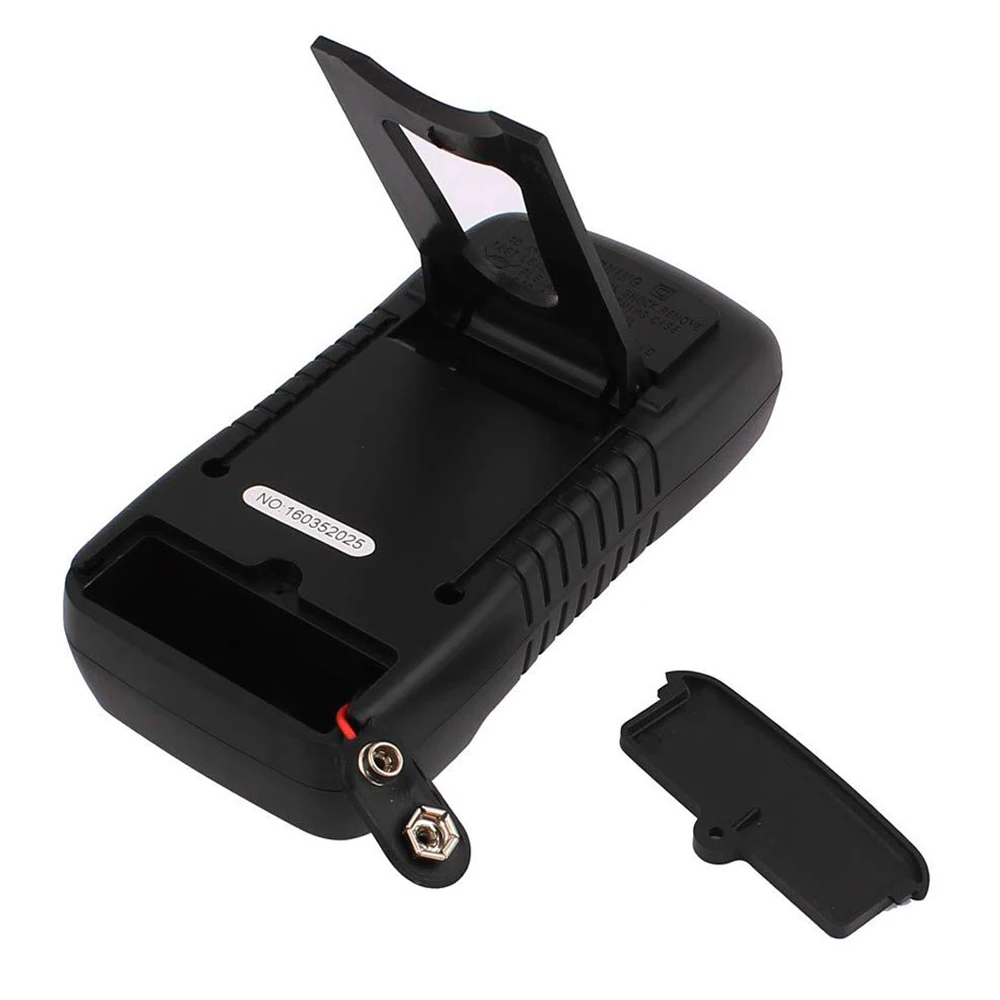

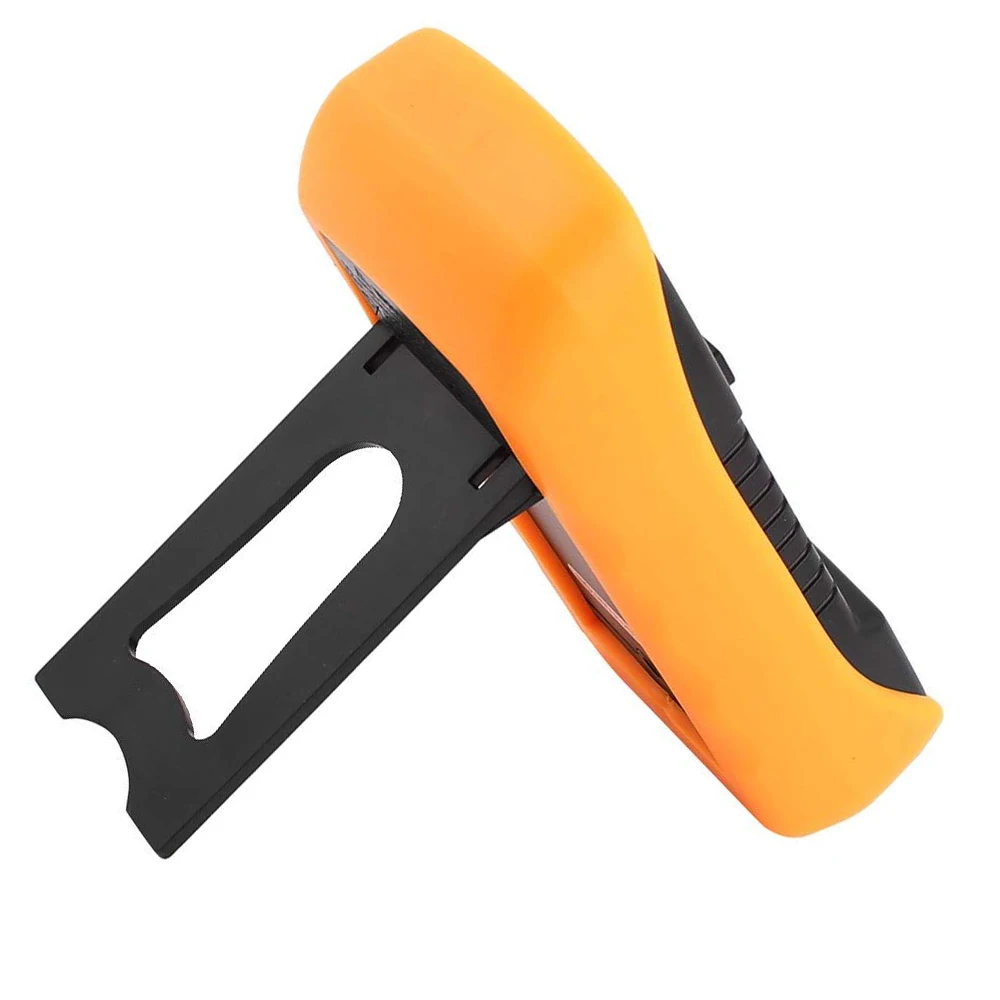

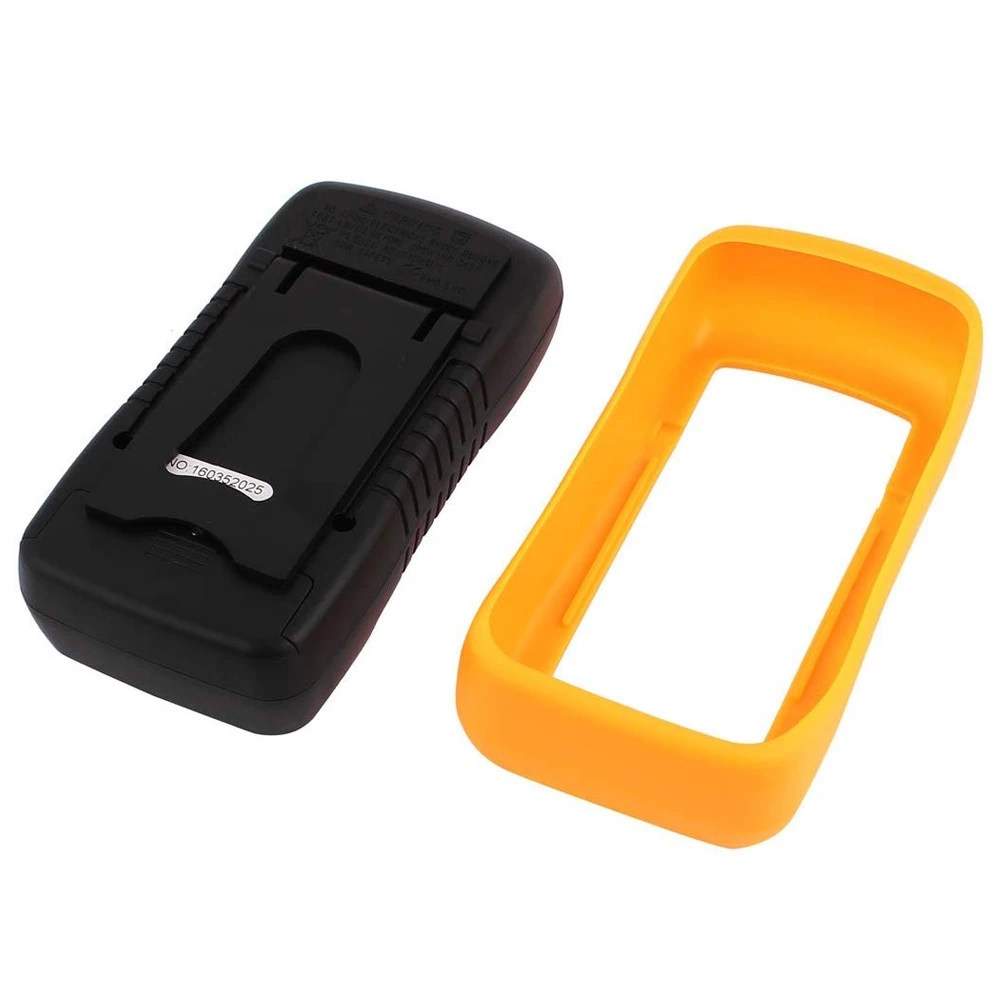

XL830L Handheld Digital Multimeter LCD Backlight Portable AC/DC Ammeter Voltmeter Ohm Voltage Tester Meter

Product Features

The XL830L handheld digital multimeter has a 3 1/2 digital LCD screen with a maximum display value of 1999, providing clear readings.
It features data retention function, allowing you to hold the measurement results for easy recording and analysis.
With a low-voltage symbol display, it alerts you when the battery is running low, ensuring accurate measurements.
The backlight function enables you to use the multimeter in low-light conditions, enhancing its usability.
It has overload protection and on-off measurement functions, ensuring safety and reliable performance during electrical testing.

Specifications

Brand Name

thinkingleader

DIY Supplies

ELECTRICAL

Display Type

Digital display

Measuring Resistance Range

200Ω-2MΩ ±(0.8%+2dgt)

Operating Mode

Manual measurement of current and voltage resistance HFE

Model Number

XL830L

Dimensions

131*52*32mm

Operating Temperature

0 - 50 ℃

AC Current

10A

AC Voltage

200-600V ±(1.2%+8dgt)

DC Voltage

200mV-600V ±(0.5%+2dgt)

Measuring Inductance Range

2-20-200-600V ±0.5%

DC Current

200uA-10A ±(1.0%+2dgt)

Feature 1

3 1/2 digital LCD screen, maximum display value 1999

Feature 2

Data retention function

Feature 3

Low voltage symbol display

Feature 4

Backlight function

Feature 5

Overload protection

Feature 6

On-off measurement

semi_Choice

yes

Description

XL830L Handheld Digital Multimeter LCD Backlight Portable AC/DC Ammeter Voltmeter Ohm Voltage Tester Meter
