Transistor Tester GM328 transistor tester capacitor tester lcr tester inductance and capacitance meter voltage tester

Product Features

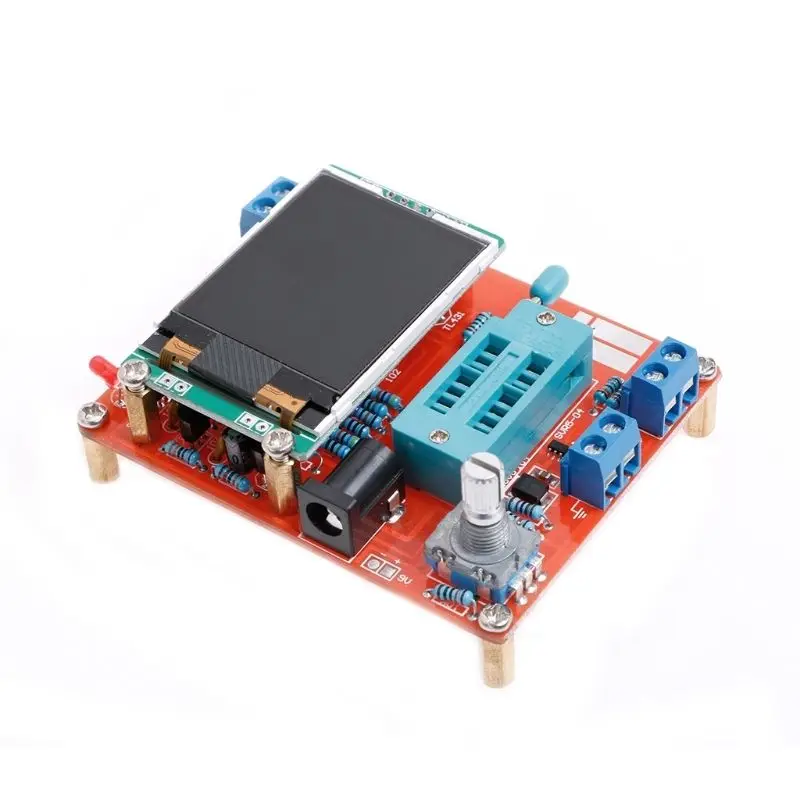

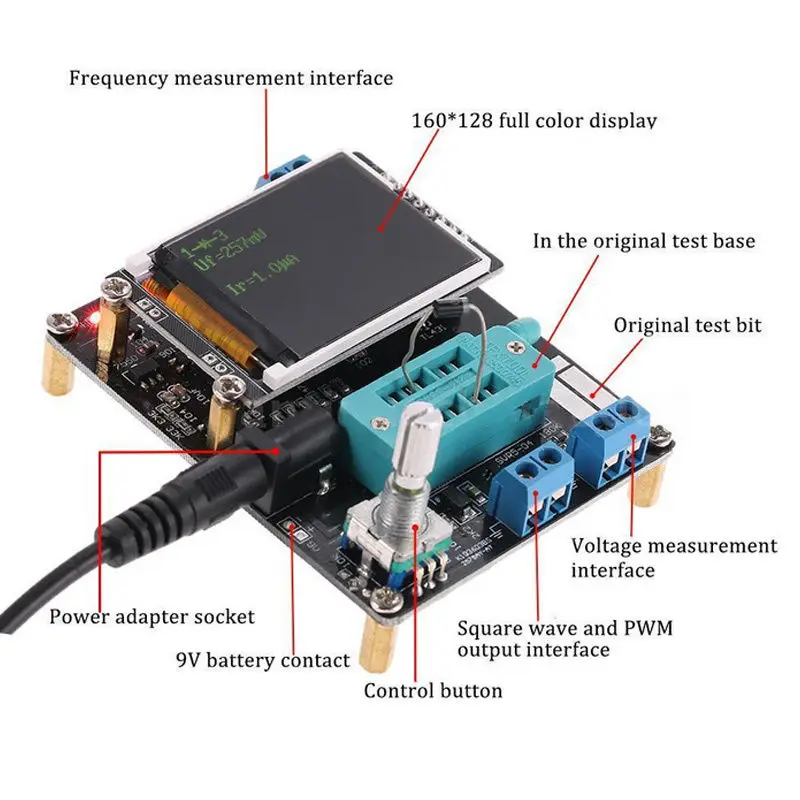

The GM328 transistor tester is a versatile device that can measure transistors, capacitors, inductance, and capacitance, as well as test voltage, making it a comprehensive tool for electronics enthusiasts.
Featuring a 160*128 LCD display, it provides clear and accurate readings, allowing users to easily analyze and diagnose electronic components.
Powered by a 9V battery (not included) or DC 6.8-12V, it offers flexibility in power supply options for different working environments.
With a maximum resistance measurement of 50Mohm and a capacitance measurement range of 25pF-100mF, it can handle a wide variety of electronic components.
The tester's PCB size of 7.8*6.2cm and screen size of 3.7*3cm make it compact and portable, suitable for on-the-go testing and repair work.

Specifications

Brand Name

Aideepen

Model Number

GM328 Mega328 Transistor Tester

Display

160*128 LCD

Power Supply

1 * 9V Battery(not included); DC 6.8-12V

Current

Approx. 30mA

Resistance Measurement

Max. 50Mohm

Capacitance Measurement

25pF~100mF

DC Voltage Measurement

Up to 50V

Screen Size

3.7 * 3cm

PCB Size

7.8 * 6.2cm
