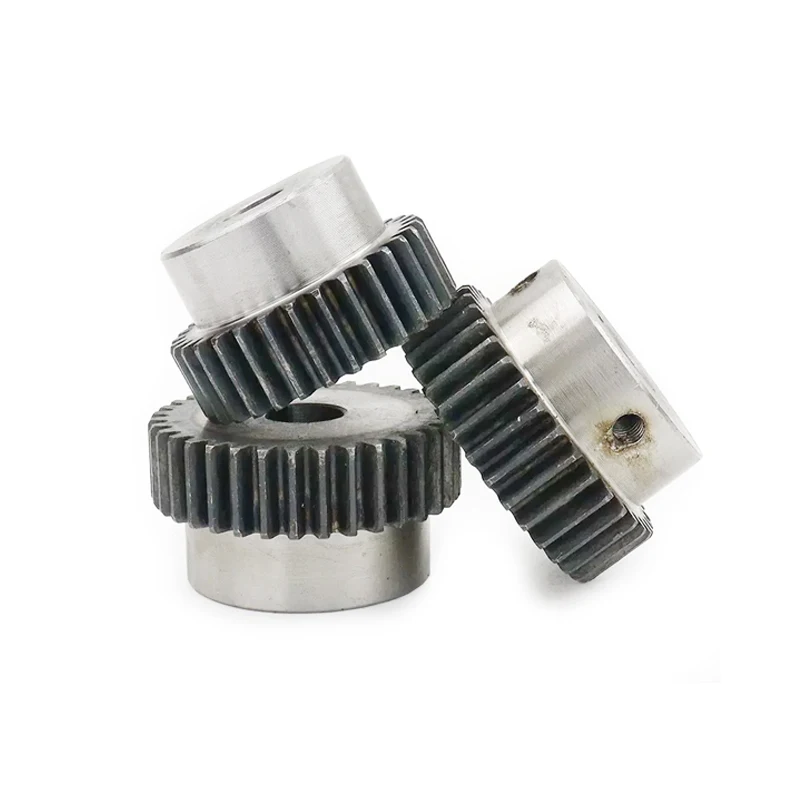

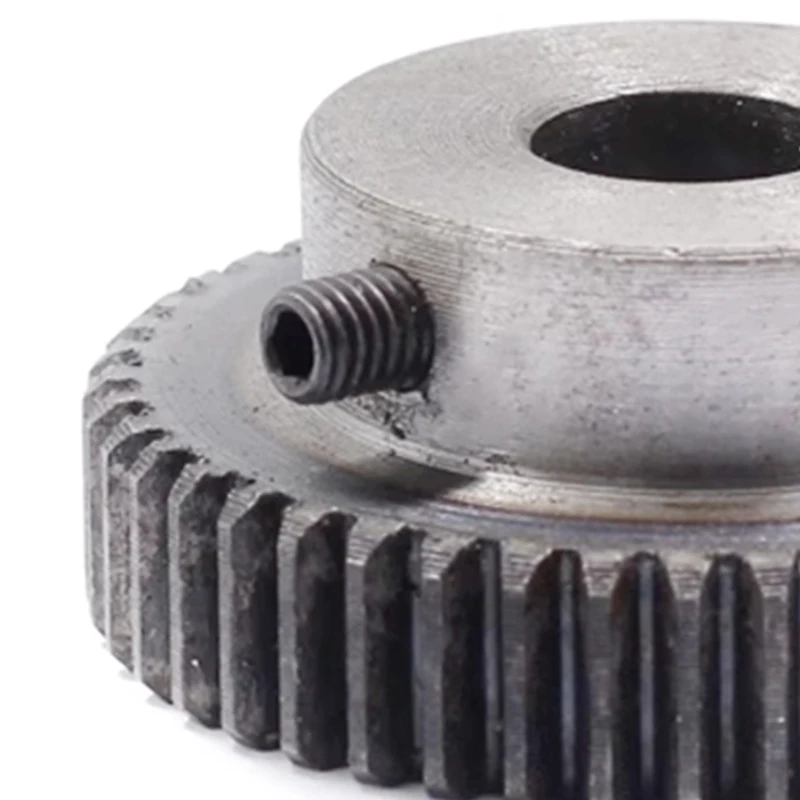

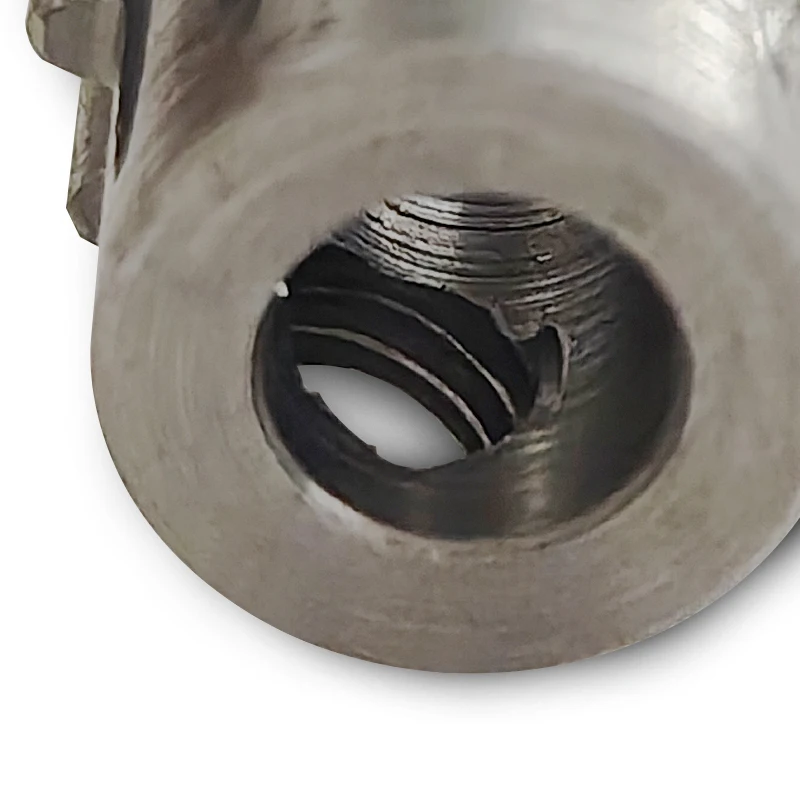

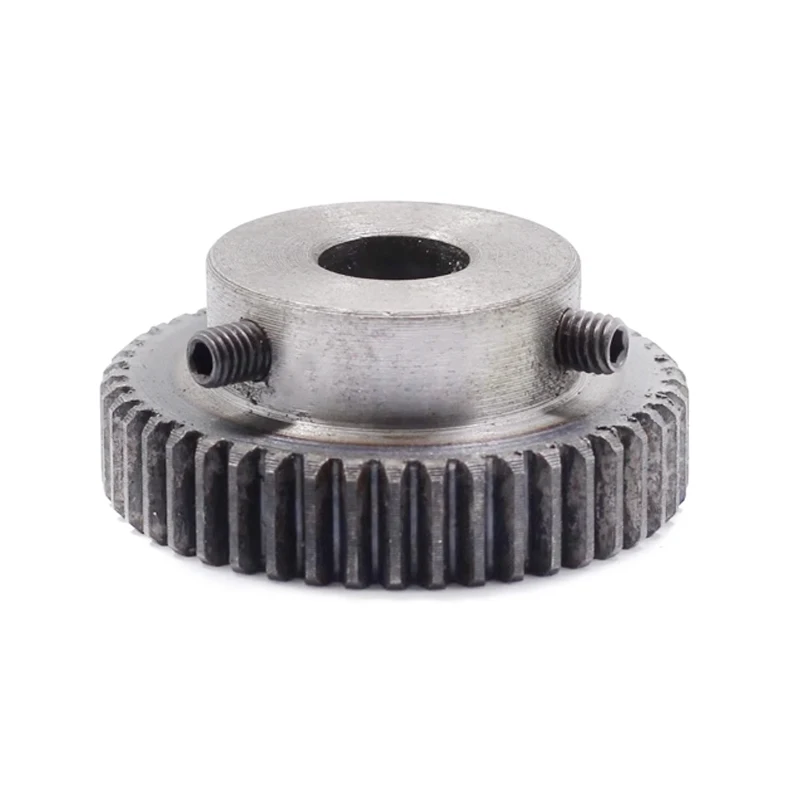

Transmission Gear Spur Gear Pinion 20Teeth Mod 1.5 M = 1.5 Bore8/10/12/15mm Right Teeth 45# Steel Positive Gear CNC Rack Transmission Motor

Product Features

This transmission gear with 20 teeth, mod 1.5, and a bore of 8/10/12/15mm is made of carbon steel, providing high-strength transmission for your motor.
Originating from Mainland China, it is a standard product with a right-hand direction and can be customized.
The spur gear shape and hobbing processing ensure smooth and efficient transmission between staggered axes.
With a pressure angle of 20 degrees and a tooth surface hardness of hard tooth surface, it offers high-precision performance.
This transmission gear is a great choice for various mechanical applications, ensuring reliable power transfer.

Specifications

Brand Name

LHOHWP

Hign-concerned Chemical

None

Direction

Right Hand

Model Number

1.5mod

Material

Carbon Steel

Shape

Spur

Processing

Hobbing

Tooth Profile

Spur Gear

Standard or Nonstandard

Standard

Pressure Angle

20 degree

Accuracy

Level 7

fixed method

Clamping screw

Application

transmission between staggered axes

position

External gear

Tooth surface hardness

Hard tooth surface

semi_Choice

yes

Description

Transmission Gear Spur Gear Pinion 20Teeth Mod 1.5 M = 1.5 Bore8/10/12/15mm Right Teeth 45# Steel Positive Gear CNC Rack Transmission Motor
