Adjustable Resistor 10PCS Rv09 Vertical 12.5mm Shaft 1k 2k 5k 10k 20k 50k 100k 0932 9 Type 3pin Seal Potentiometer

Product Features

This adjustable resistor comes in a pack of 10 pieces, offering a wide range of resistance values from 1k to 100k, suitable for various electronic projects.
With a vertical design and a 12.5mm shaft, it provides easy adjustment and precise control for your circuits.
The thin-film technology ensures stable performance and a long service life, even under harsh operating conditions.
It has a resistance tolerance of 20% and a rated power of 0.05w/0.03w, making it reliable for different applications.
The 3-pin seal potentiometer has an insulation resistance of more than 100MΩ at 250V DC and can withstand 250V AC for 1 minute or more, ensuring safety and durability.

Specifications

Brand Name

baishundianzi

Condition

New

Resistance Tolerance

Rated Power

0.05w/0.03w

Technology

Thin Film

Type

Rotary Potentiometer

Operating Temperature

-40-+85

Model Number

Rv09 Vertical

Max. Operating Voltage

50v ac/20v dc

Insulation resistance

More than 100MΩ at 250V DC

Withstand voltage

250V AC (1 minute or more)

Total rotation Angle

280 ° + 5 °

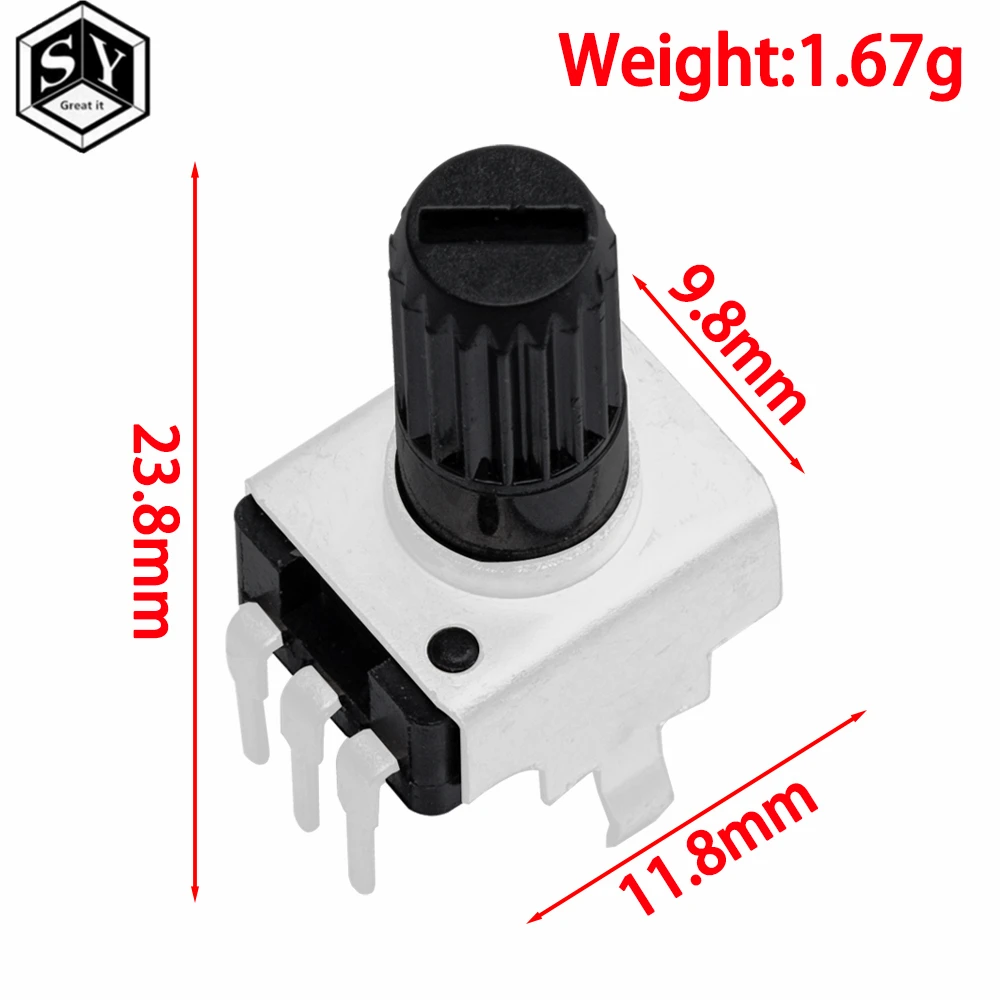

weight

9.8*23.8*11.8mm

semi_Choice

yes

Description

Adjustable Resistor 10PCS Rv09 Vertical 12.5mm Shaft 1k 2k 5k 10k 20k 50k 100k 0932 9 Type 3pin Seal Potentiometer
