WitMotion Bluetooth BLE 5.0 Low-consumption 50m WT901BLECL 9 Axis Sensor Angle + Acceleration Gyro + Magnetometer For PC/Android

Product Features

The WitMotion Bluetooth BLE 5.0 low-consumption 9-axis sensor offers accurate measurement of 3-axis XYZ acceleration, gyro, angle, and magnetic field, suitable for PC and Android use.
With a built-in MPU9250 and a rechargeable battery, it provides reliable performance and portability for various applications.
It has a wide measurement range, including an acceleration range of 16g and an angular velocity of +-2000 degree/second, meeting the needs of different projects.
The sensor supports a maximum output frequency of 50HZ (baud rate 115200), ensuring fast and efficient data transmission.

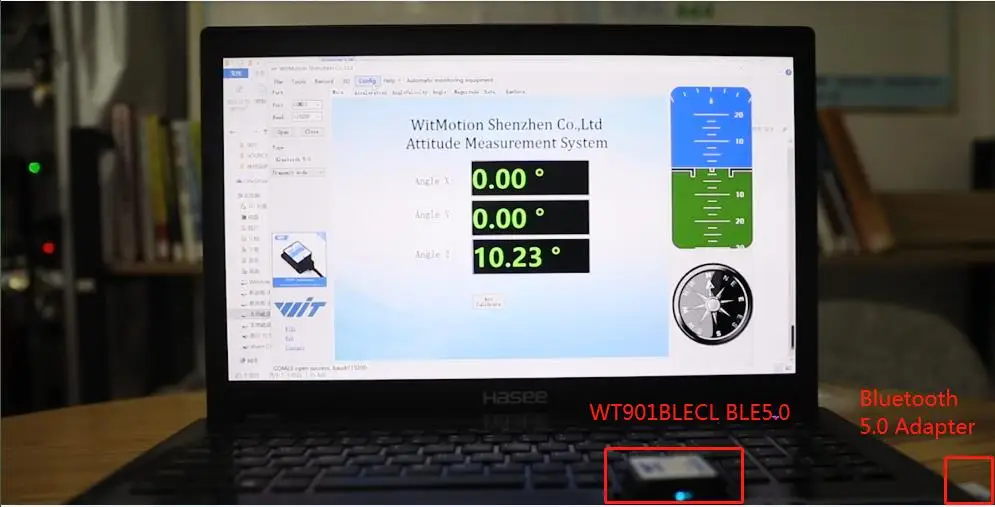

It comes with technical support in the form of PC software and an Android app, along with lifetime technical support for users.

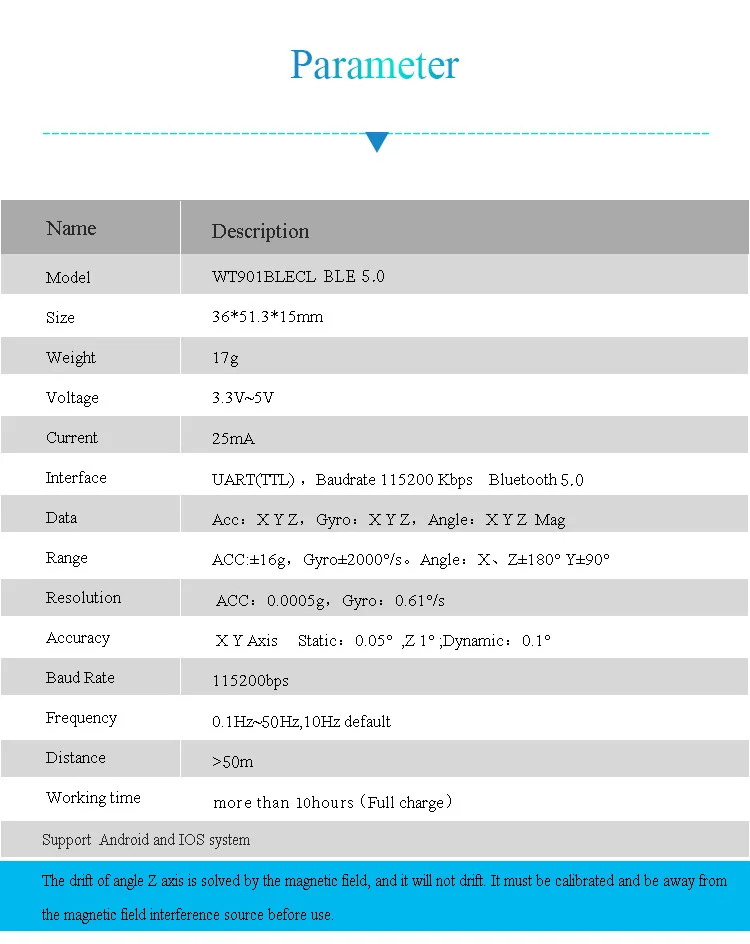

Specifications

Brand Name

WitMotion

High-concerned chemical

None

Type

Vehicle Use

Application Age Group

Adult

Compatibility

All Compatible

Function

Push Message

Language

English

Voltage Input

3.3-5V

Consumption Current

Typical 25mA

Volume

36*51.3*15mm

Measurement

3-axis XYZ Acceleration, Gyro, Angle, Magnetic Field

Range

Acceleration: 16g, Angular Velocity: +-2000 degree/second

Measurement Angle

X/Z-axis: +-180 degree, Y-axis +-90 degree

Output Frequency

Max 50HZ (baud rate 115200)

Interface

TTL level

Data Frequency

0.2-50Hz (10Hz Default)

Design

Built-in MPU9250, built-in rechargeable battery

Bluetooth Version

Bluetooth 5.0

Technical Support

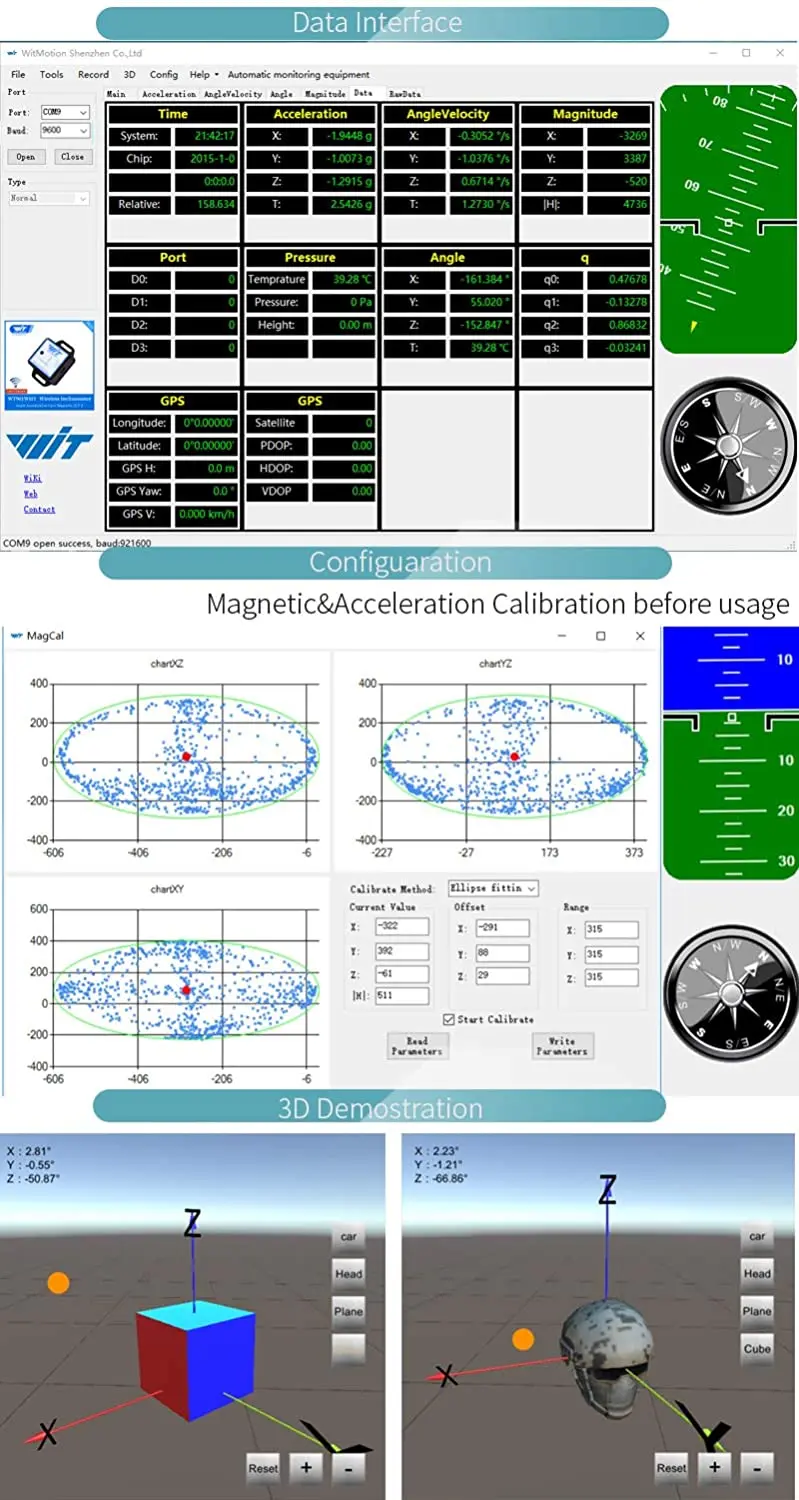

Provide PC Software, Android App

After-Sale Service

Lifetime Technical Support

Battery Included

Description

WitMotion Bluetooth BLE 5.0 Low-consumption 50m WT901BLECL 9 Axis Sensor Angle + Acceleration Gyro + Magnetometer For PC/Android
