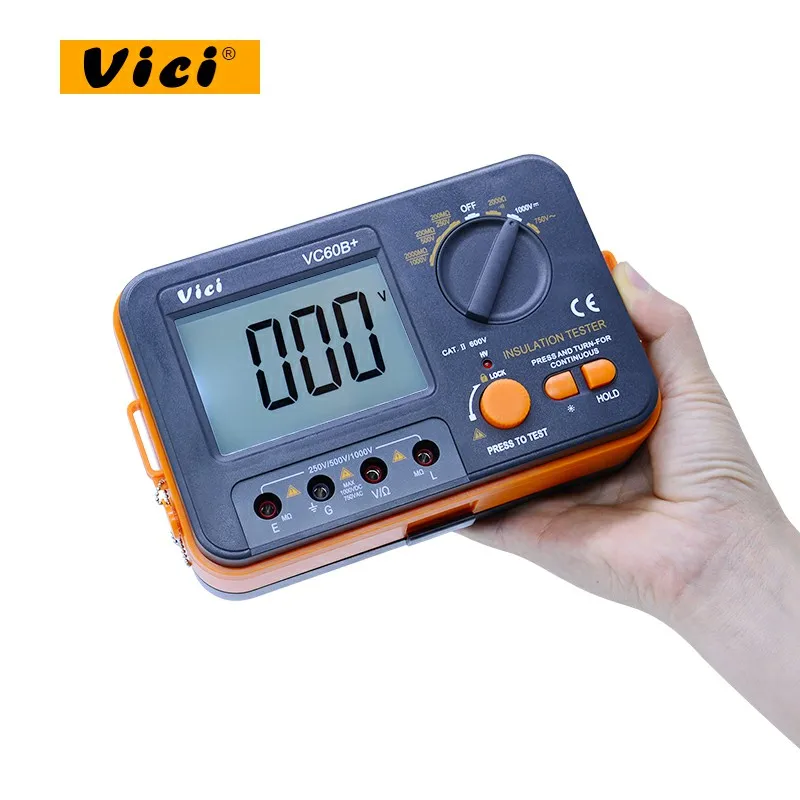

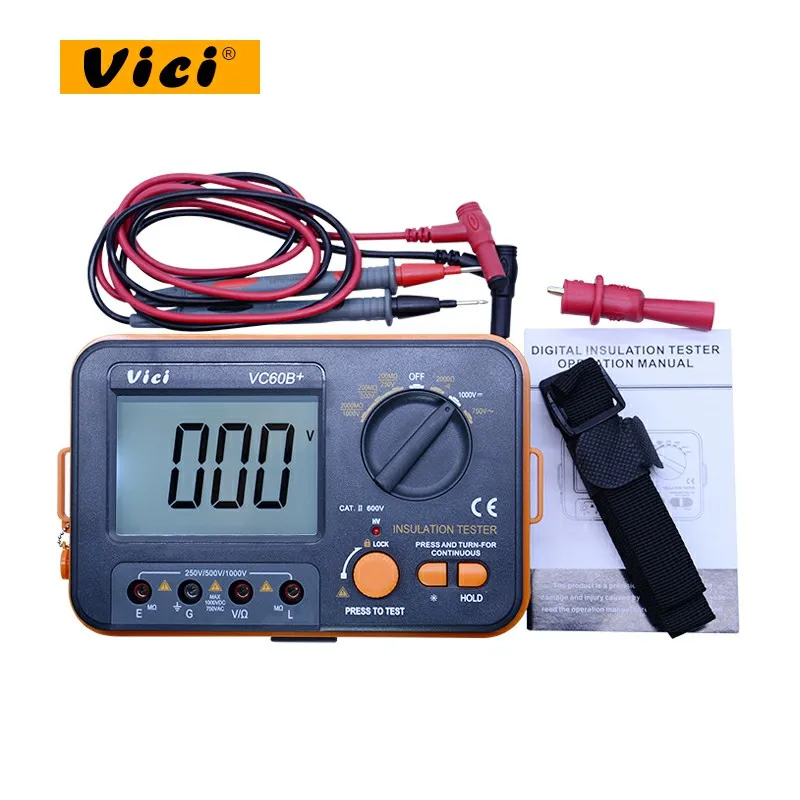

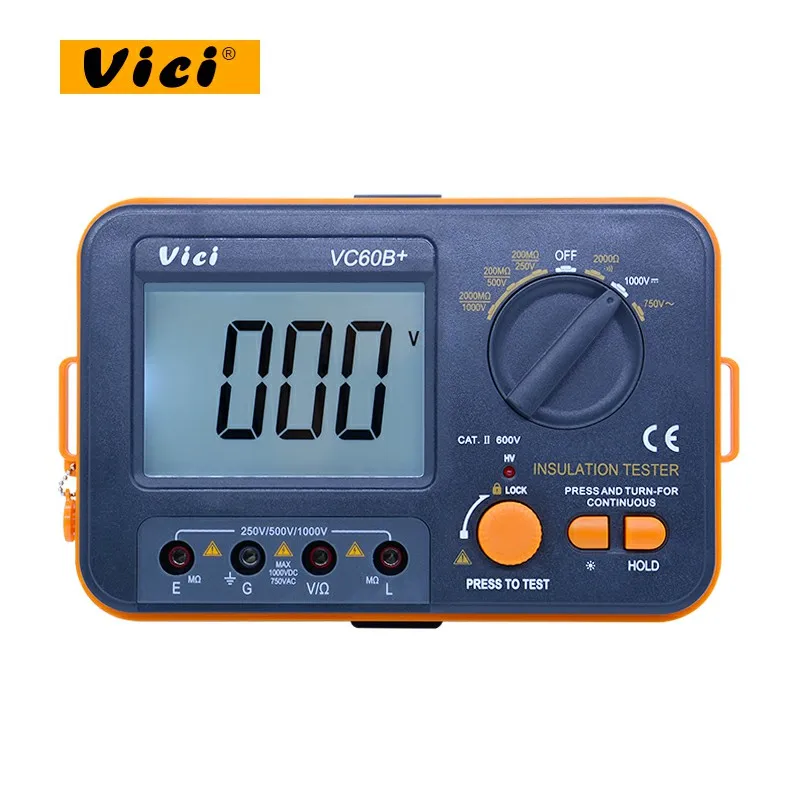

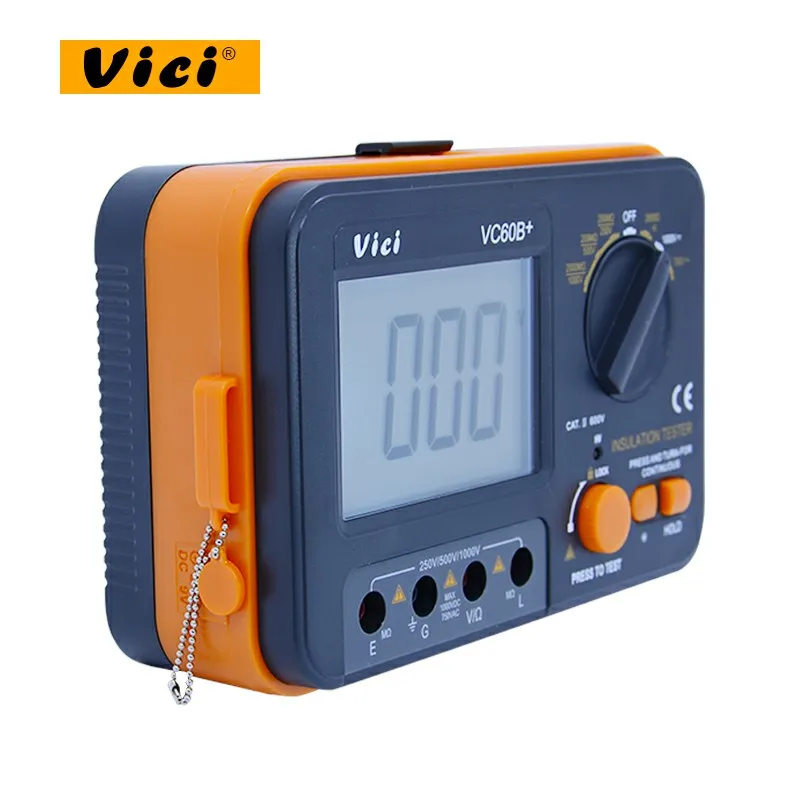

Vici VC60B+ digital Insulation Resistance meter Tester Megohmmeter Ohmmeter Voltmeter DVM 1000V 2G w/ LCD Backlight

Product Features

This Vici VC60B+ digital insulation resistance meter, with a measuring range of 0~200(Mohm) and a testing voltage of 0~1000(V), offers accurate measurements.
Originating from Mainland China, it has an accuracy class of +/-4%+2 and a digital display.
With a LCD backlight that lasts about 10 Sec., it's easy to read in different lighting conditions.
It can be powered by 6*1.5V AA batteries or an external DC 9V power source.
It's a reliable tool for electrical DIY projects and insulation resistance testing.

Specifications

Brand Name

OUTEST

DIY Supplies

ELECTRICAL

Model Number

VC60B+

Measuring Range

0~200(Mohm)

Dimensions

176*116*63MM

Testing Voltage

0~1000(V)

Operating Temperature

-15~55

Accuracy Class

+/-4%+2

Display Type

Digital Only

Item

digital earthmeter insulation resistance meter

Max display

1999

Model number

VC60B+

Power

6 * 1.5V AA battery or external DC 9V power source(not included)

LCD size

75*52mm

Sampling rate

3 times/Sec.

Insulation resistance

250V/500V/1000V

LCD backlight Approx

10Sec.

Function protection

Yes

Data hold

Yes

Description

Vici VC60B+ digital Insulation Resistance meter Tester Megohmmeter Ohmmeter Voltmeter DVM 1000V 2G w/ LCD Backlight
