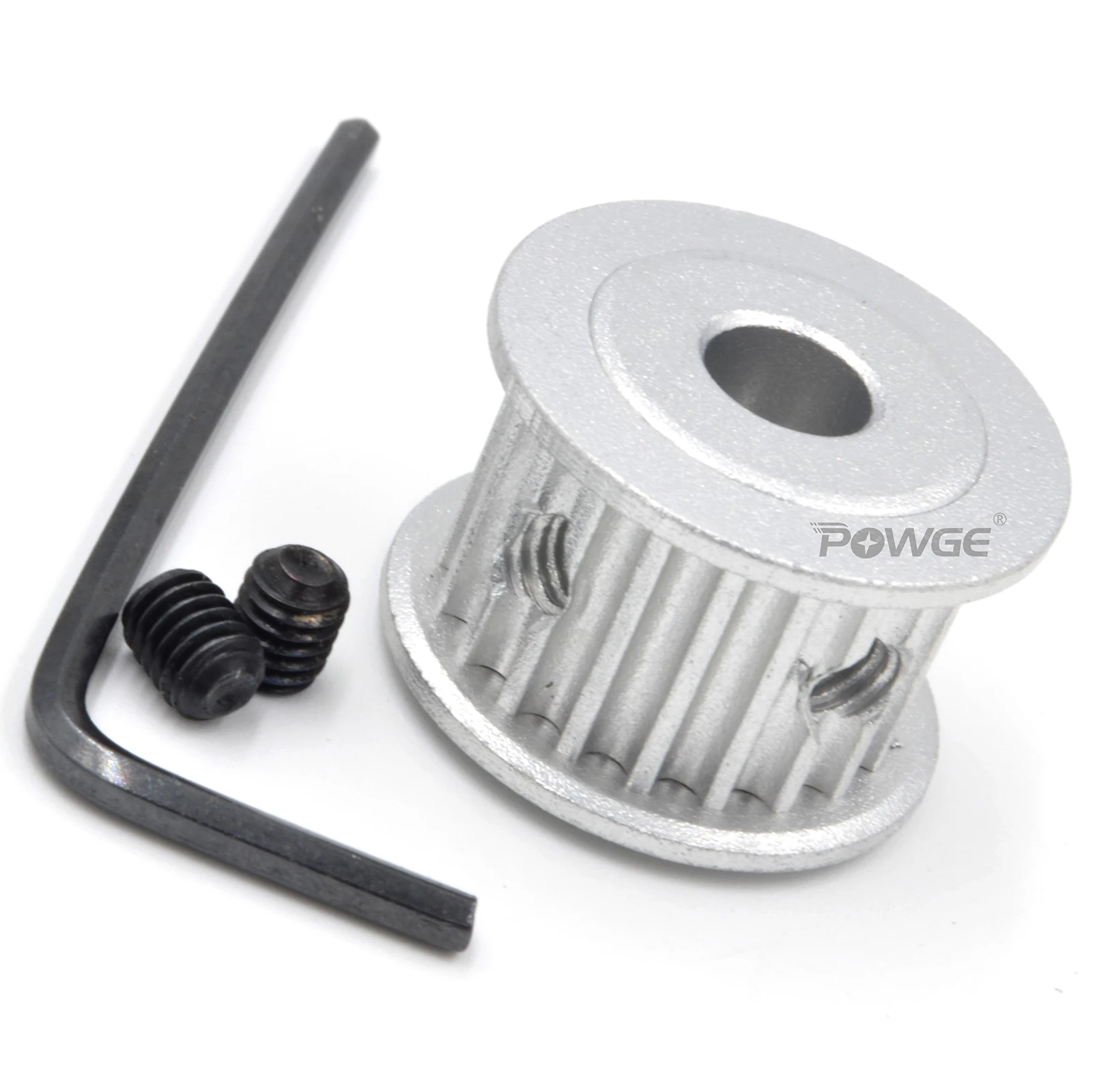

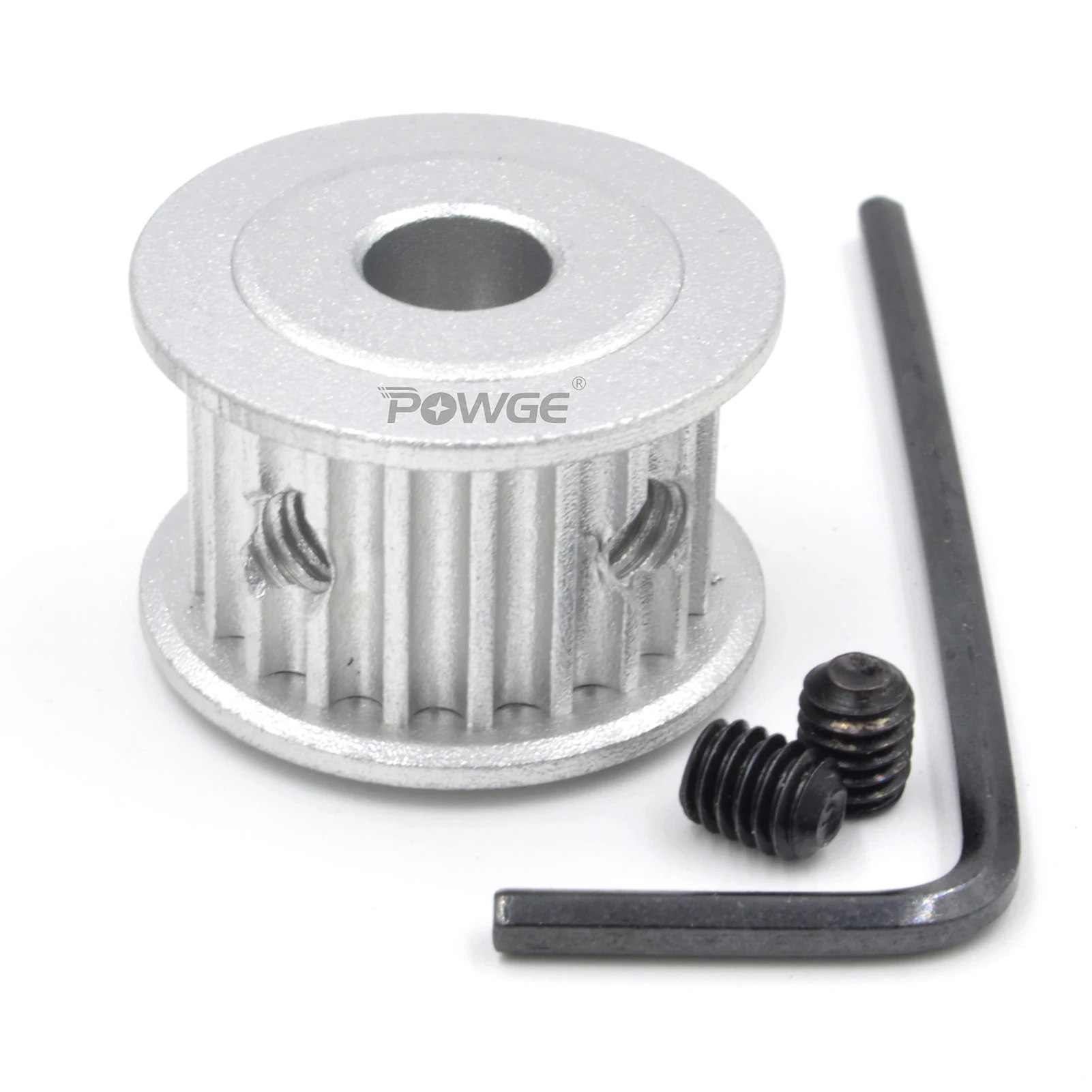

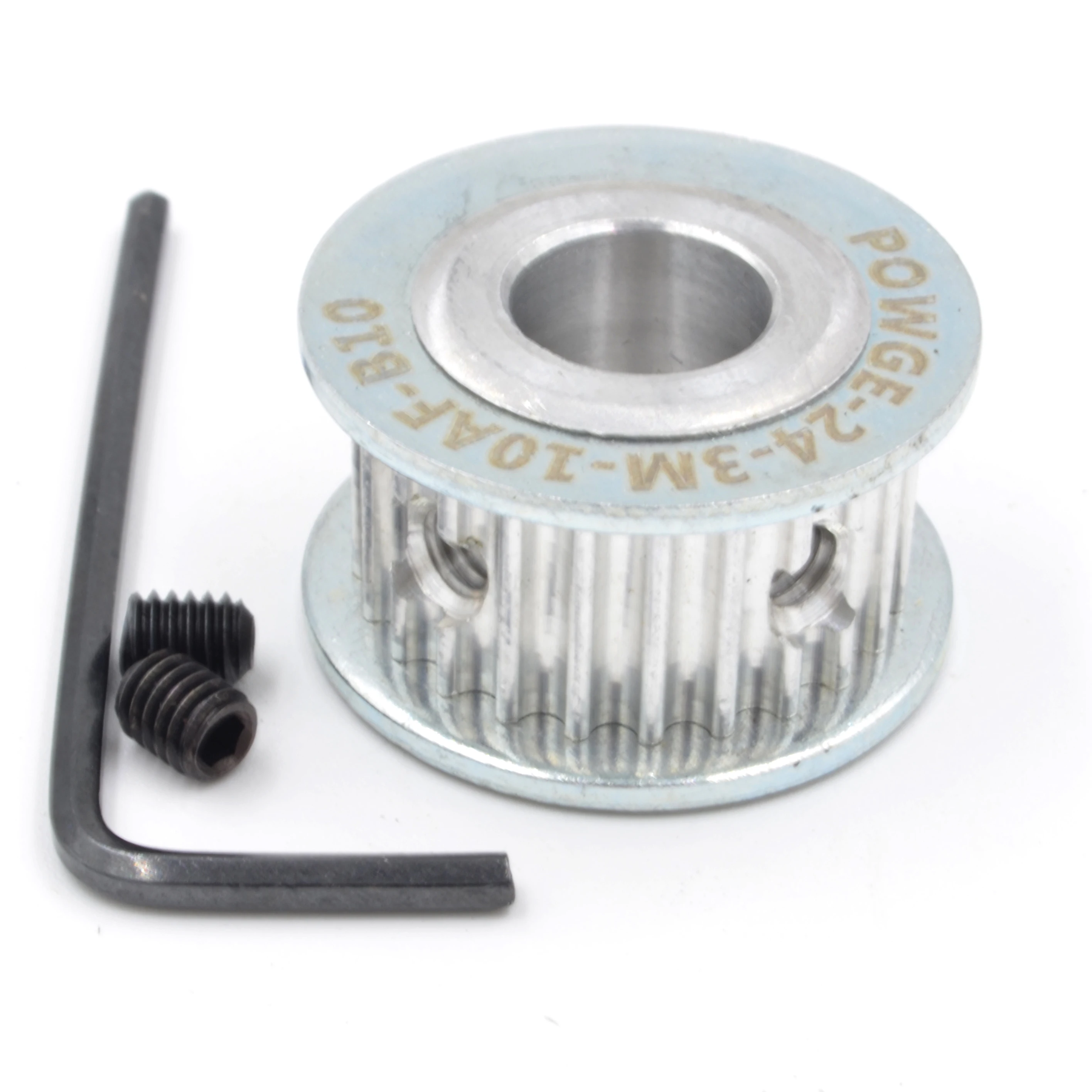

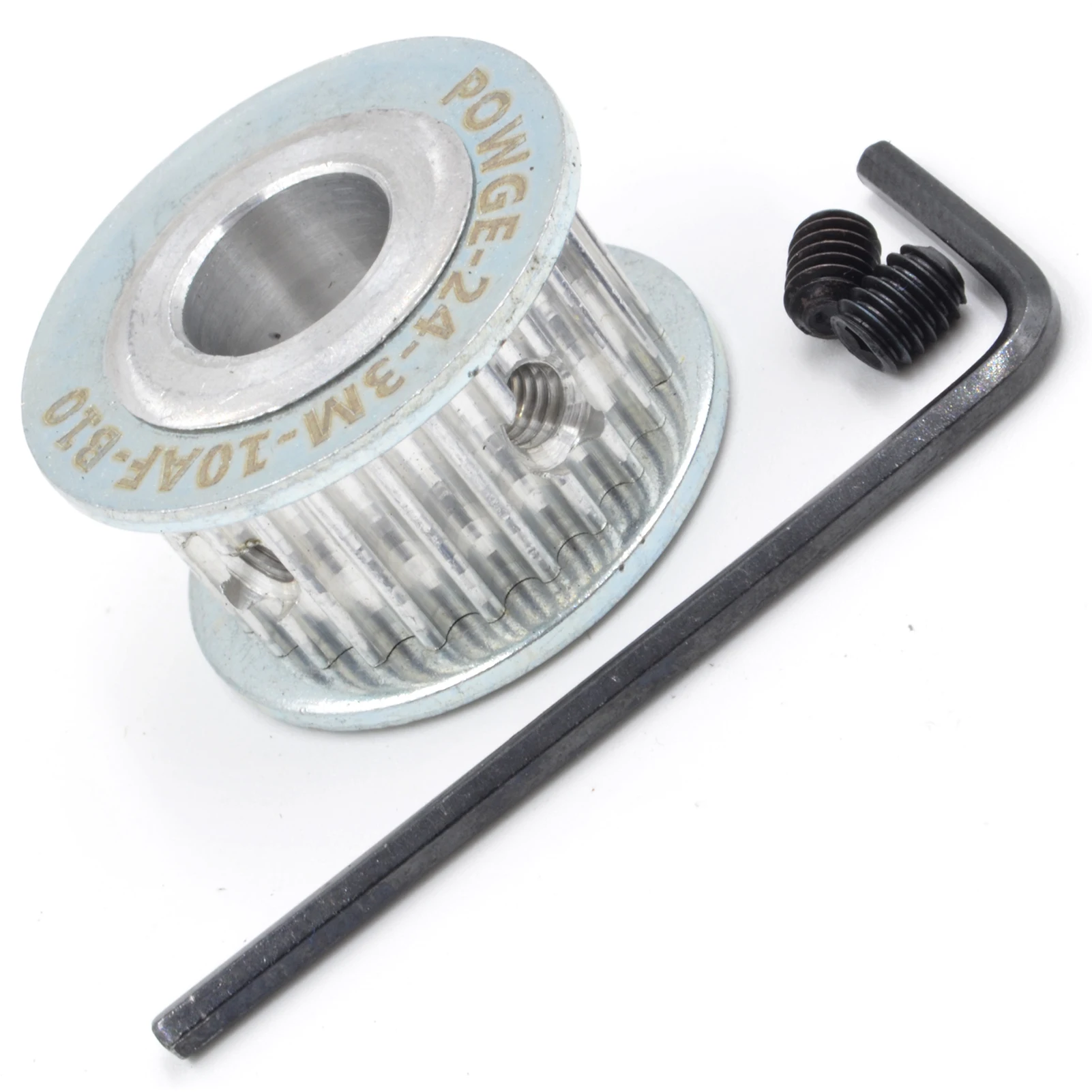

20 22 24 25 teeth HTD 3M Timing Pulley AF Bore 4/5/6/6.35/7/8/10/12mm for HTD3M belt width 6/10/15/20mm 20T 22T 24T 25T timing belt pulley,timing pulley

Product Features

These HTD 3M timing pulleys with 20, 22, 24, or 25 teeth are made of Aluminium Alloy 6061, ensuring high strength and durability for long-term use.
They have a pitch of 3mm and are suitable for HTD3M belts with widths of 6, 10, 15, or 20mm, offering a wide range of compatibility.
The adjustable bore sizes from 4 to 12mm and double-flange design make them easy to install and adapt to different applications.
With 2 * M4 screw holes and an AF shape, these timing pulleys provide stable and reliable performance in various mechanical systems.
Customization is available, allowing you to get the exact timing pulley that meets your specific requirements.

Specifications

Brand Name

POWGE

Type

Timing pulley

Hign-concerned Chemical

None

Material

Aluminium Alloy6061

Number of Teeth

20T/22T/24T/25T

Model Number

HTD3M

Picth

3mm

Teeth Number

20Teeth/22Teeth/24Teeth/25Teeth

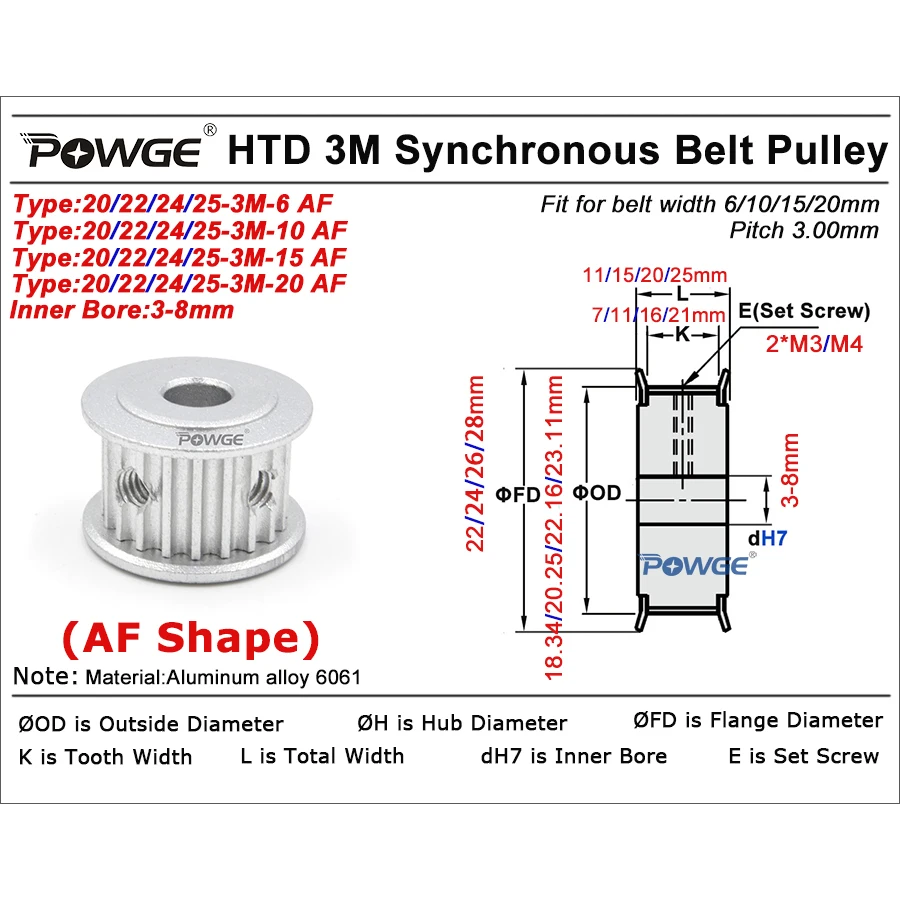

Outside Diameter (OD)

18.34/20.25/22.16/23.11mm

Fit for Belt Width

6mm/10mm/15mm/20mm

Bore

4/5/6/6.35/7/8/9.525/10/12/12.7/14/15mm

Flange

Double flange

Screw hole

2*M4

Shape

Description

20 22 24 25 teeth HTD 3M Timing Pulley AF Bore 4/5/6/6.35/7/8/10/12mm for HTD3M belt width 6/10/15/20mm 20T 22T 24T 25T timing belt pulley,timing pulley
