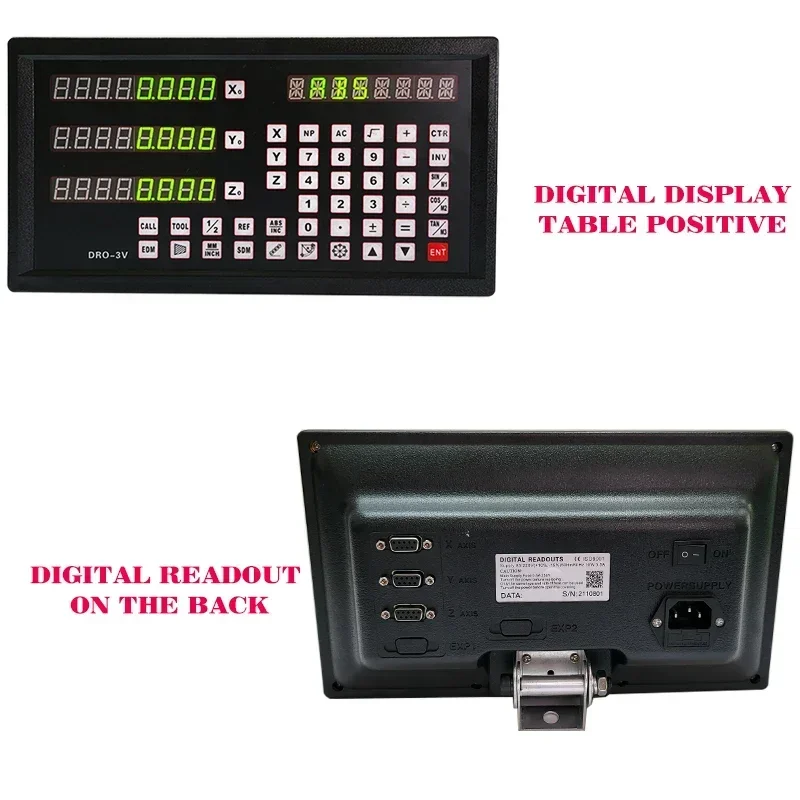

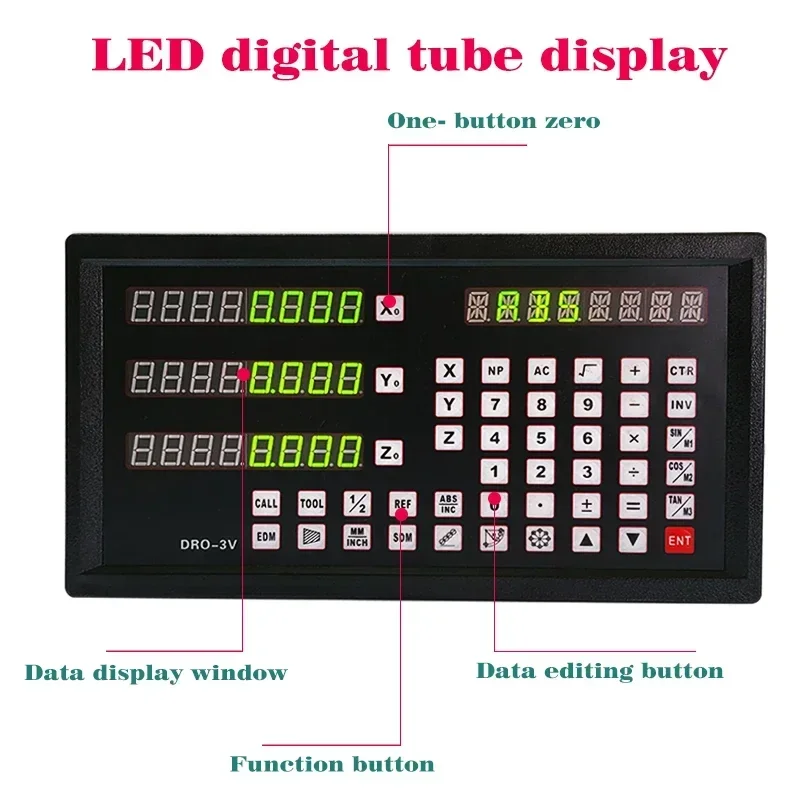

Digital readout Display DRO-3V and 3 Pieces 0-1000mm high-precision Encoder For Milling machine EDM Boring Machine Grating ruler

Product Features

High-precision Encoder: With a scale resolution of 5um/0.005mm and a maximum measuring speed of 60m/min, it ensures accurate measurements for various machine tools.
Wide Voltage Range: AC90-260V 50/60HZ, suitable for different power supplies in different regions.
Complete Accessories: Comes with a display cover, mounting bracket, and user manual, providing convenience for installation and use.
Multiple Output Options: Outputs 5VDC and accepts TTL input, compatible with different machine systems.
Long Scale Cable: With a 3-meter scale cable, it offers flexibility in installation and use without being limited by cable length.

Specifications

Brand Name

SNSNTDRO

Battery Included

Hign-concerned Chemical

None

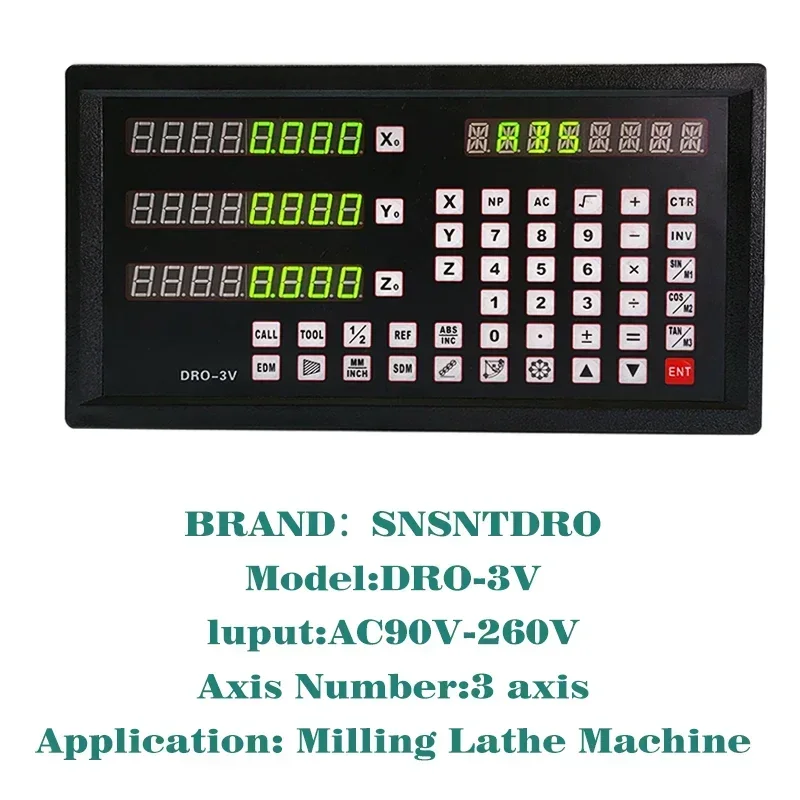

Model Number

DRO-3V

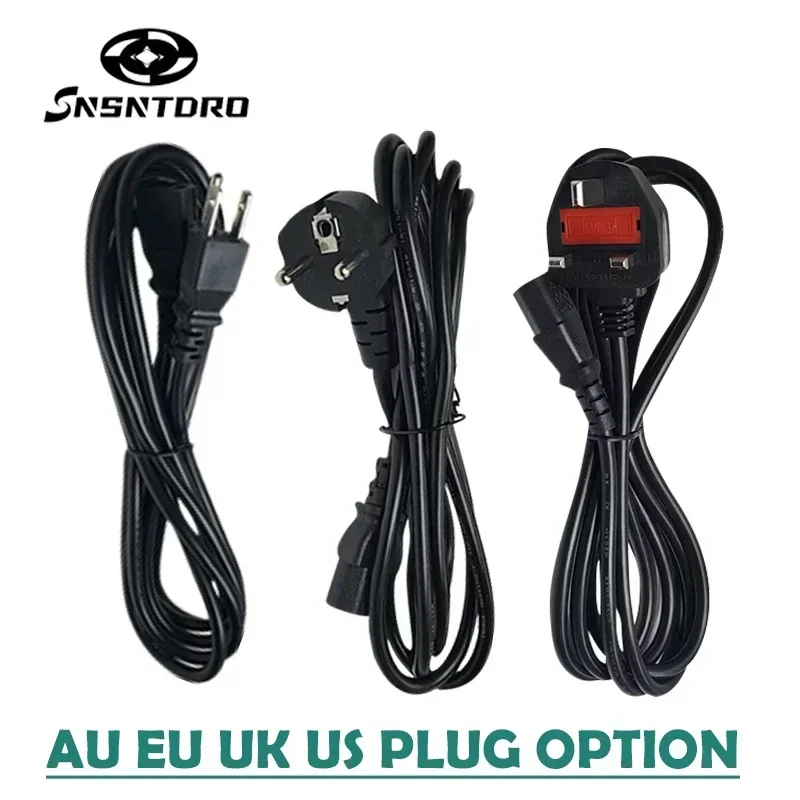

Power cable type

AU EU US UK etc.

DRO acceptable input

TTL

DRO reading resolution

0.1um,0.5um, 1um, 2um, 5um, 10um

Voltage range

AC90-260V 50/60HZ

Ouput

5VDC

Power

25VA

Accessories

display cover, mounting bracket, user manual

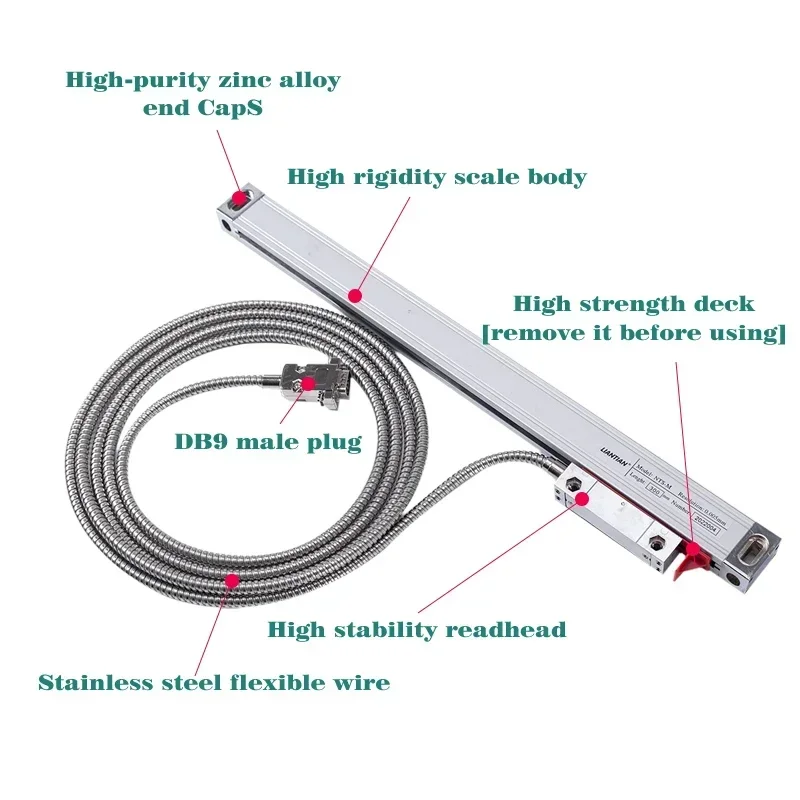

Item name

snsntdro linear scale

Scale Resolution

5um/ 0.005mm

Available Measrus Length

50mm-1000mm

NTS-M:Cross Section Dimension

22mmX34mm

Output signal

TTL

Input voltage

5VDC ±5% , 100mA

Procut name

Mill Lathe 3 Aaxis DRO kit

Max of Measuring speed

60m/min

Scale cable

3 meters

If include accessories

Yes(with protect cover, screws and accessories)

Application

Lathe, Mill, Drill, Boring machine etc.

Description

Digital readout Display DRO-3V and 3 Pieces 0-1000mm high-precision Encoder For Milling machine EDM Boring Machine Grating ruler
