Planetary Reducer PX80 Ratio 3/ 4/ 5/ 8/ 10/ 13/ 16/ 20/ 36/ 64 Max 60N.m Suit fot Nema 32 34 servo stepper motor planetary reducer

Product Features

With a maximum output torque of 60N. m, this planetary reducer PX80 is highly efficient, with efficiency rates of 95%, 90%, and 85%, ensuring reliable performance.

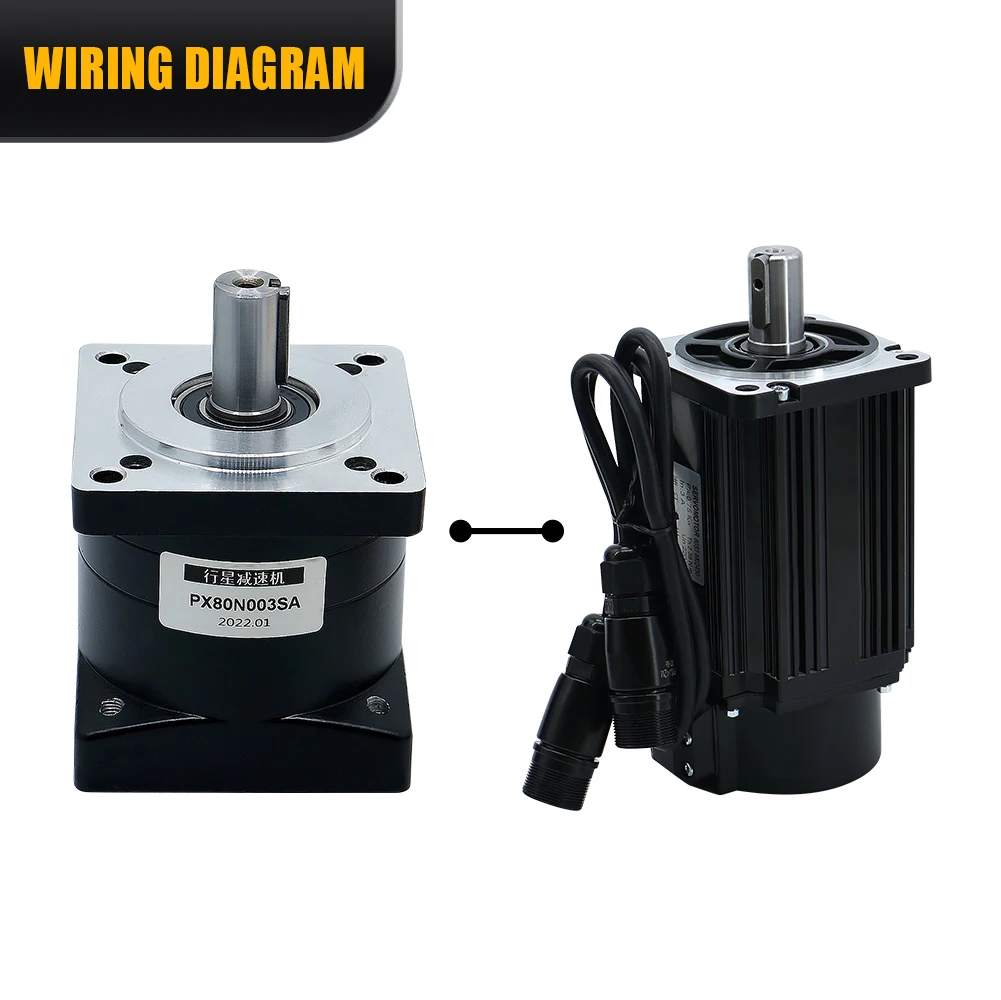

The planetary gearing arrangement of this reducer provides smooth and stable operation, and it can work with Nema 32 and 34 servo stepper motors effectively.
Featuring a CE certification, this planetary reducer meets international quality standards, guaranteeing its quality and safety for users.
With an input speed of 3000rpm and a long lifespan of 20000H, this reducer can handle continuous operation and provide long-term service.
Available in a wide range of ratios from 3 to 64, this planetary reducer offers flexibility to meet different application requirements in various industries.

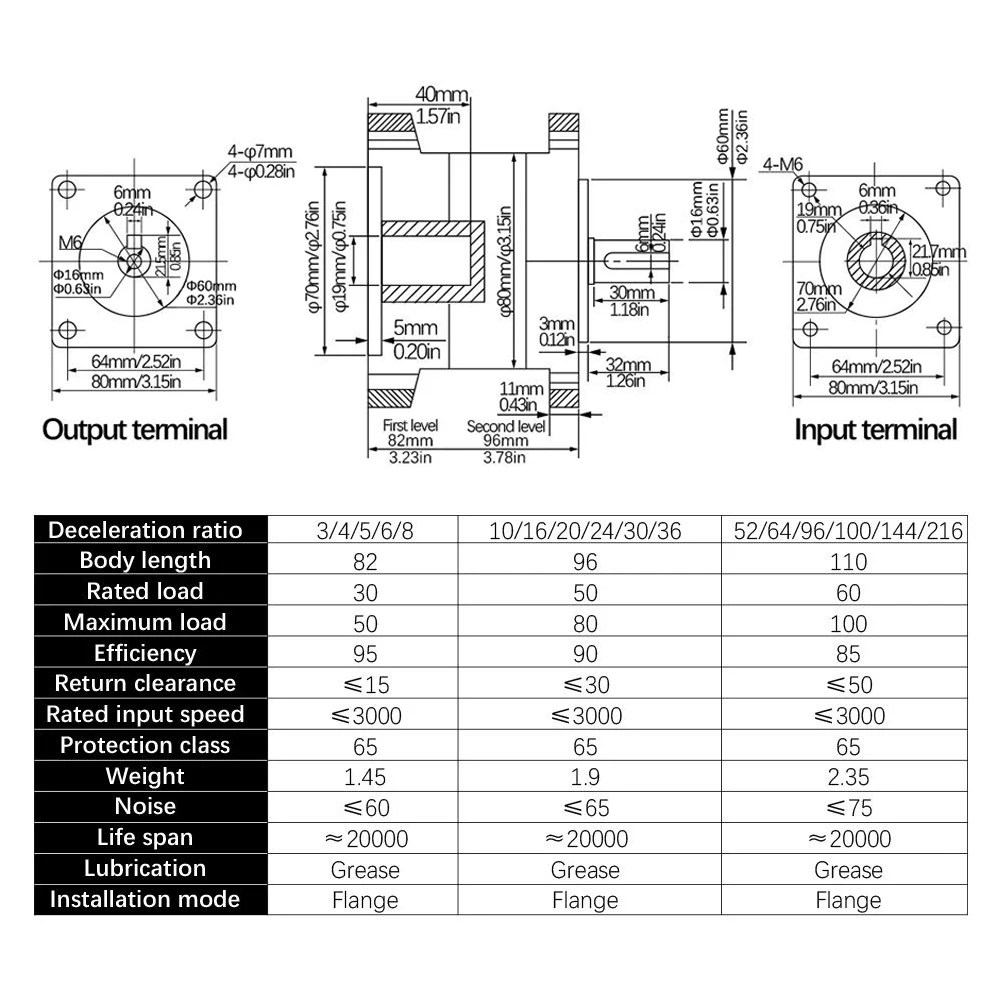

Specifications

Brand Name

XLWLH

Hign-concerned Chemical

None

Gearing Arrangement

Planetary

Model Number

PX80

Output Torque

60N.m

Input Speed

3000rpm

Product name

Planetary Reducer

Ratio

3/ 4/ 5/ 8/ 10/ 13/ 16/ 20/ 36/ 64

Output shaft

16mm

Input shaft

19mm

Efficiency

95% 90% 85%

Protection class

65IP

Life span

20000H

Noise value

≤ 60/65/75 DB

Description

Planetary Reducer PX80 Ratio 3/ 4/ 5/ 8/ 10/ 13/ 16/ 20/ 36/ 64 Max 60N.m Suit fot Nema 32 34 servo stepper motor planetary reducer
