Digital Multimeter Smart Multimeter 9999 Counts TRUE RMS Digital Smart Auto Range 1000V 10A Tester Meter Ohm Hz Capacitance REL True RMS AC DC DMM

Product Features

This digital multimeter from KAIWEETS offers 9999 counts TRUE RMS, with a smart auto-range function, suitable for measuring AC/DC voltage, current, resistance, capacitance, and more.
Originating from Mainland China, it has a RoHS certification, ensuring its quality and safety, and it comes with a variety of measurement functions.
With a digital display and a measurement speed of 3 times per second, it can provide accurate and quick measurement results.

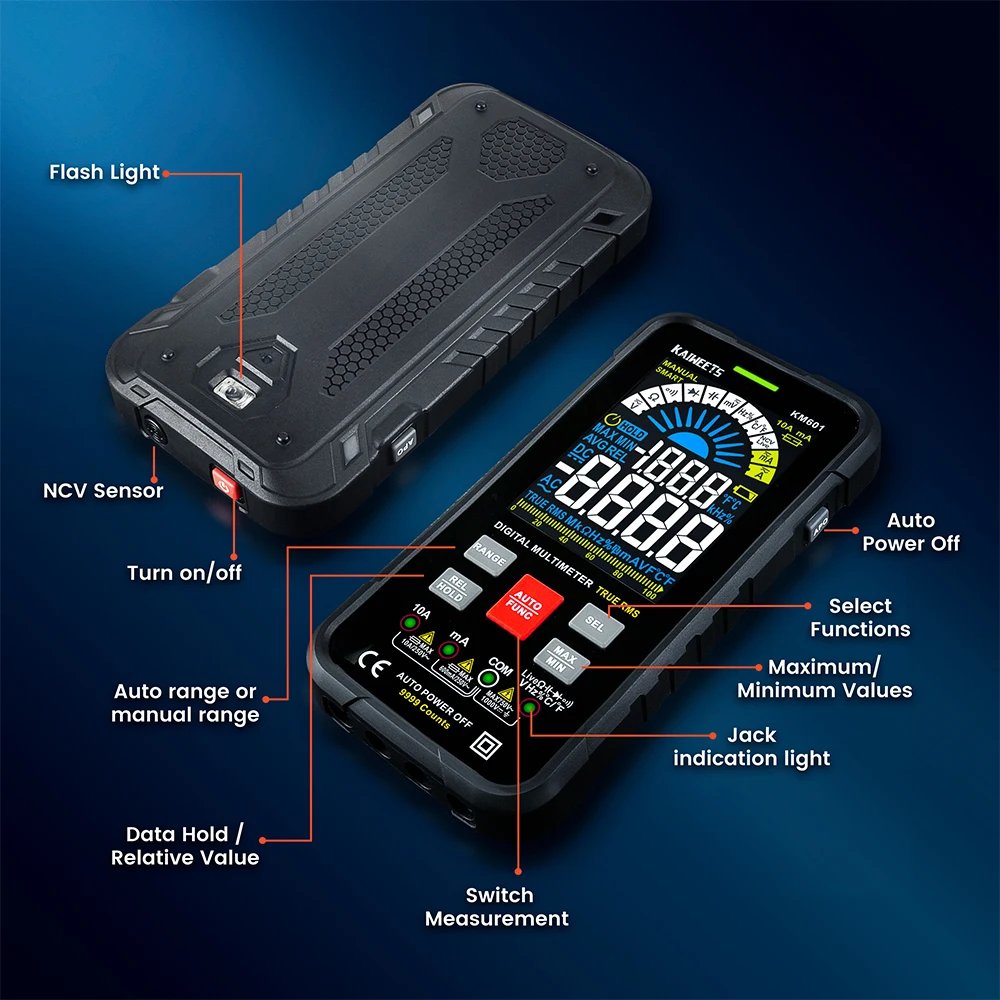

It features a maximum voltage of DC1000V/AC750V and a maximum current of 10A, and it also has functions like NCV test, continuity measurement, and flashlight.
Whether you are an electrician, an electronics hobbyist, or need to perform electrical measurements, this digital multimeter is a reliable and practical tool.

Specifications

Brand Name

KAIWEETS

DIY Supplies

ELECTRICAL

AC Voltage

99.99mV/999.9mV/9.999V/99.99V/750V±(0.8%reading+3)

Display Type

Digital display

DC Voltage

99.99mV/999.9mV/9.999V/99.99V/999.9V±(0.5%reading+3)

AC Current

9.999mA/99.99mA/600mA/9.999A±(1.2%reading+3)

Measuring Resistance Range

999.9Ω/9.999kΩ/99.99kΩ/999.9kΩ/9.999MΩ/99.99MΩ±(2%reading+10)

DC Current

9.999mA/99.99mA/600mA/9.999A±(1.2%reading+3)

Measuring Capacitance Range

9.999nF/99.99nF/999.9nF/9.999μF/99.99μF/999.9μF/9.999mF/99.99mF

Operating Mode

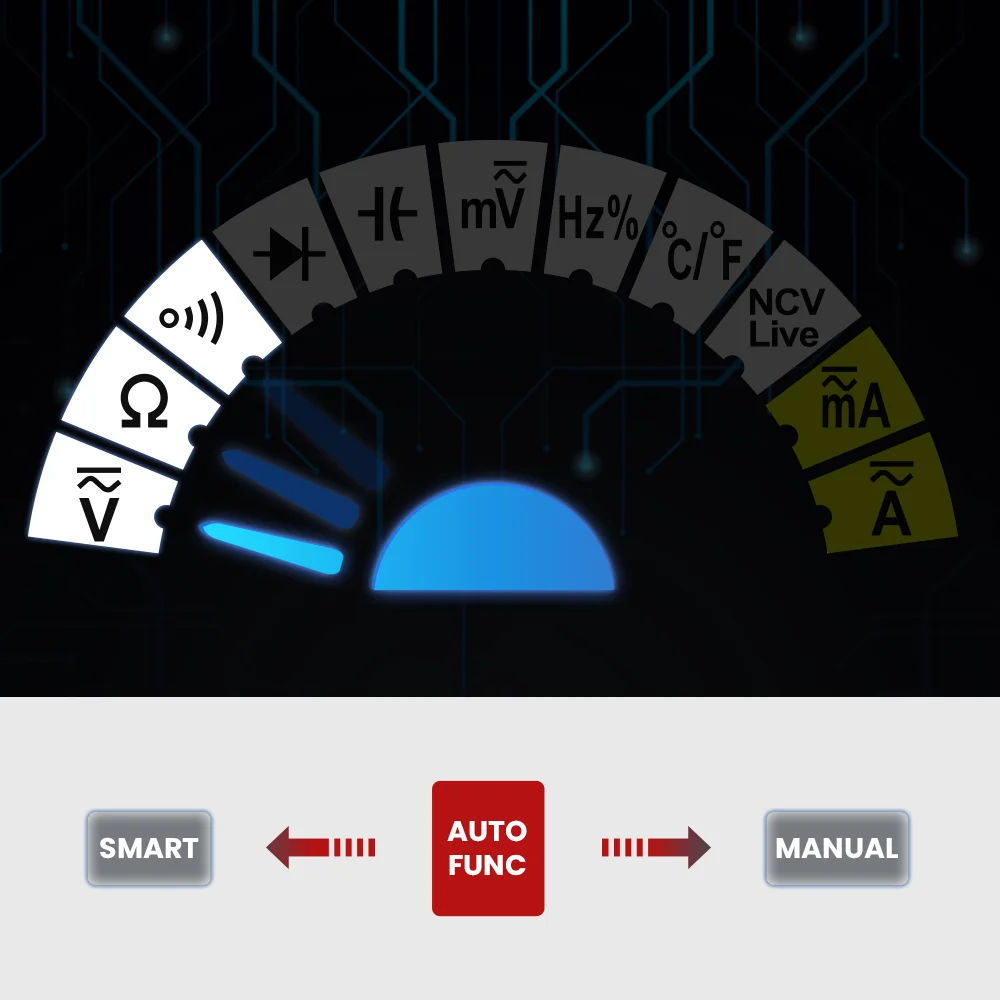

Smart/Manual

Model Number

KM601

Dimensions

7.95 x 4.37 x 2.13 inches

Weight

0.625kg

Display Measurements

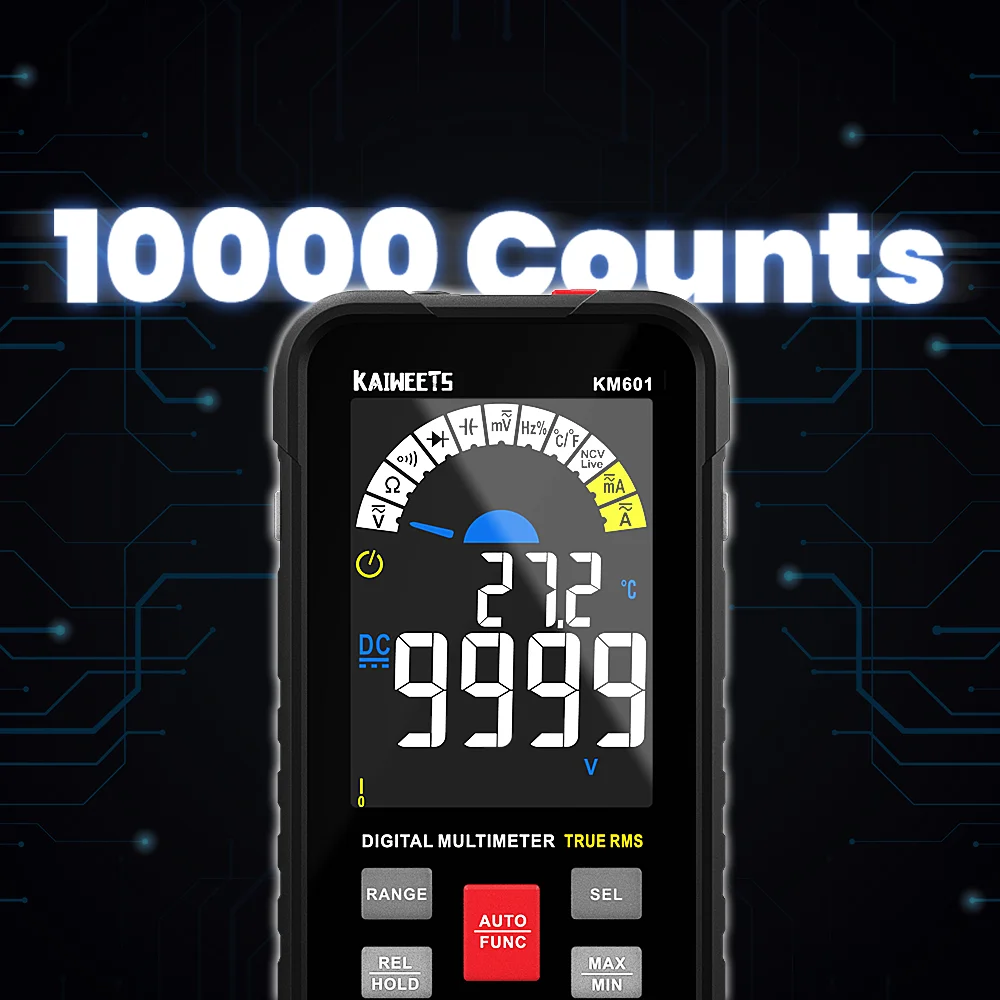

9999counts

Frequency

9.999Hz/99.99Hz/999.9Hz/9.999kHz/99.99kHz/999.9kHz/9.999MHz ±(1.0%reading+3)

Duty

0.1% ±(1.0%reading+3)

Range

Auto

Measurement Speed

3 times per second

Battery

3x1.5V AAA Batteries(not included)

Maximum Voltage

DC1000V/AC750V

Maximum Current

10A

True-RMS yes or no

yes

NCV test

yes

low battery indicator

yes

Continuity Measurement

yes

Diode Measurement

yes

Live test

yes

Flashlight

yes

Temperature Measurement

yes

Description

Digital Multimeter Smart Multimeter 9999 Counts TRUE RMS Digital Smart Auto Range 1000V 10A Tester Meter Ohm Hz Capacitance REL True RMS AC DC DMM
