Digital Oscilloscope FNIRSI DPOX180H Handheld Dual Channel 180MHz-3DB 2 In 1 Function Signal Generator Fluorescence Display ZOOM

Product Features

With 2 digital channels and a real-time sampling rate of 500MSa/s, it offers precise signal analysis. Its 320*240 pixels display resolution provides clear waveforms.

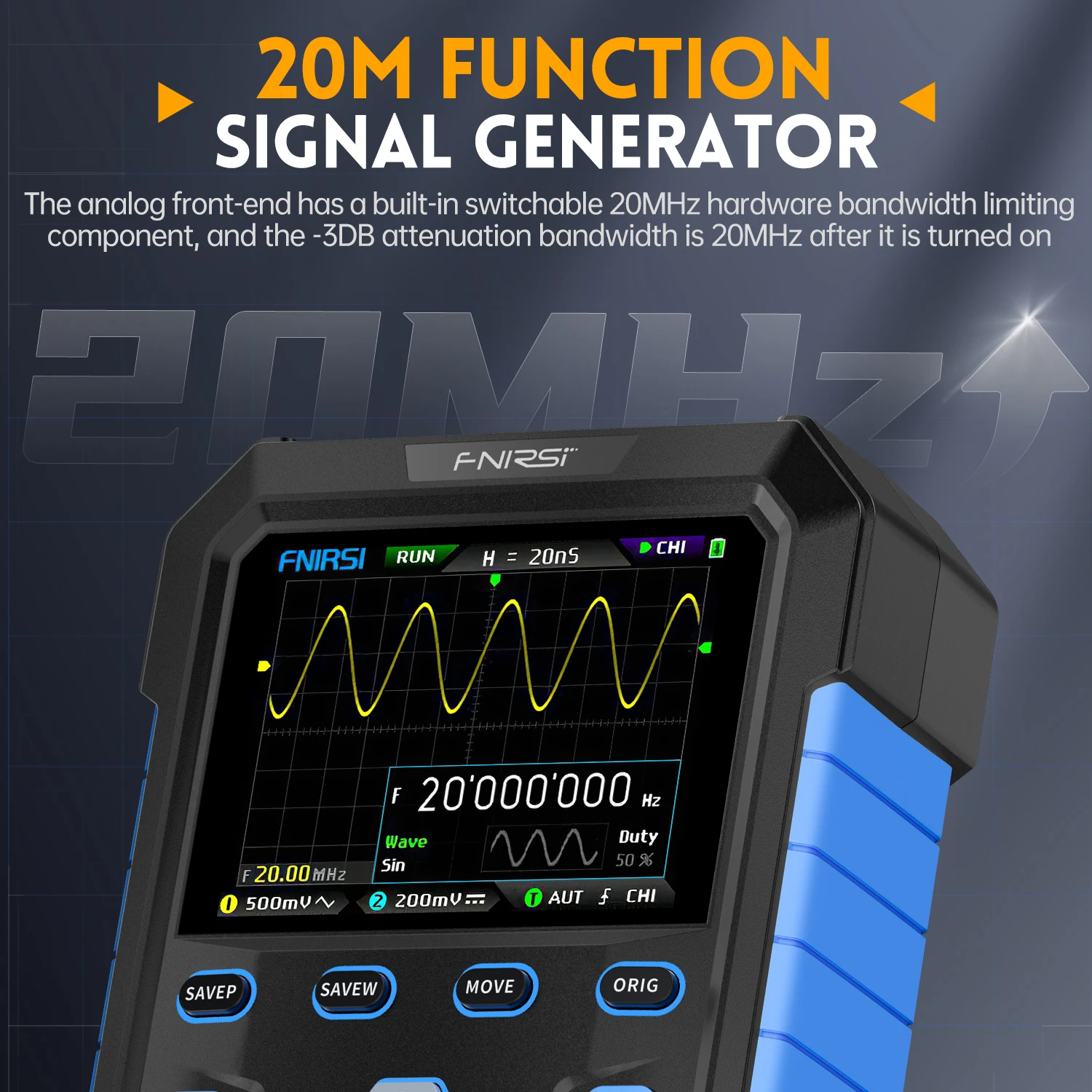

The 180MHz bandwidth and 20M hardware bandwidth limitation ensure accurate signal capture. It also has an adjustable automatic bandwidth limitation for flexible use.
Featuring digital phosphor technology, color temperature display, and zoom scaling time base, it provides enhanced viewing and analysis capabilities.
Equipped with various measurement functions like cursor measurement (Frequency/Period/Amplitude), FFT, and 12 kinds of parameter measurement, it is very comprehensive.
It has high-voltage burnout protection, a 3000mAh battery with a standby time of 3.5 hours at full charge, and a USB transmission interface for easy data transfer.

Specifications

Brand Name

FNIRSI

FNIRSI Model

DPOX180H

Hign-concerned Chemical

None

DIY Supplies

ELECTRICAL

Display resolution

320*240 Pixels

Digital Channels

Model Number

DPOX180H

IS Battery Demountable

Real Time Sampling Rate

500MSa/s

Max Waveform Capture Rate

50,000wfm/s

Band Width

180MHz

Input coupling

DC/AC

Rise time

2.5nS

Storage depth

120Kpts

Input impedance

1MΩ-18PF

Vertical sensitivity

5mV ~ 10V(1X)

Time base range

5nS ~ 50S

DC accuracy

±2%

Time accuracy

±0.01%

Measurement range

40mV ~ 80V(1X)

Digital phosphor technology

YES

Color temperature display

YES

Zoom scaling time base

YES

20M hardware bandwidth limitation

YES

Adjustable automatic bandwidth limitation

YES

X-Y mode

YES

FFT

YES

Cursor measurement

Frequency/Period/ Amplitude

Trigger detection

Digital trigger

Trigger mode

Auto/Single/Normal

Trigger edge

Rising/Falling

Roll mode

YES

Screenshot storage

Waveform storage

250 groups

Capture signal

500

Parameter measurement

12 kinds

Signal generator

14 standard function signals

Auto-adjustment

YES

Waveform manager

YES

Waveform output

YES

High-voltage burnout protection

YES

Screen size

2.8 inches

Display technology

IPS full view

Expansion interface

USB transmission interface

Auto power-off

5minutes-2hours

Firmware upgrade

YES

Charging requirements

5V 2A

Battery capacity

3000mAh

Standby time

3.5 hours at full charge

Dimensions

135mmx90mmx40mm

Description

Digital Oscilloscope FNIRSI DPOX180H Handheld Dual Channel 180MHz-3DB 2 In 1 Function Signal Generator Fluorescence Display ZOOM
